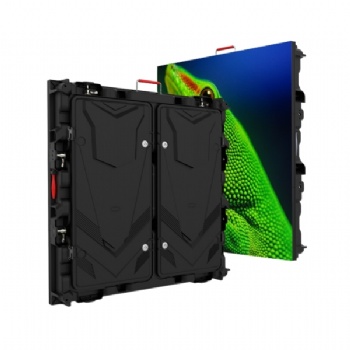

outdoor slim light aluminum LED display cabinet 960x960mm

OF series outdoor slim light aluminum LED display cabinet 960x960mm

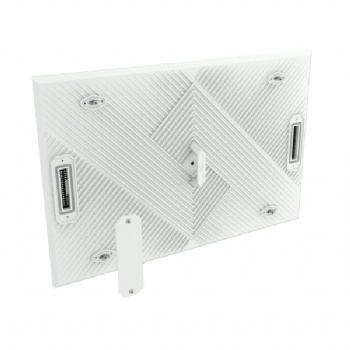

Module: 480x320mm with aluminum case
Slim light aluminum cabinet 960x960mm
High brightness ≥7000nitsm, high refresh rate 3840Hz

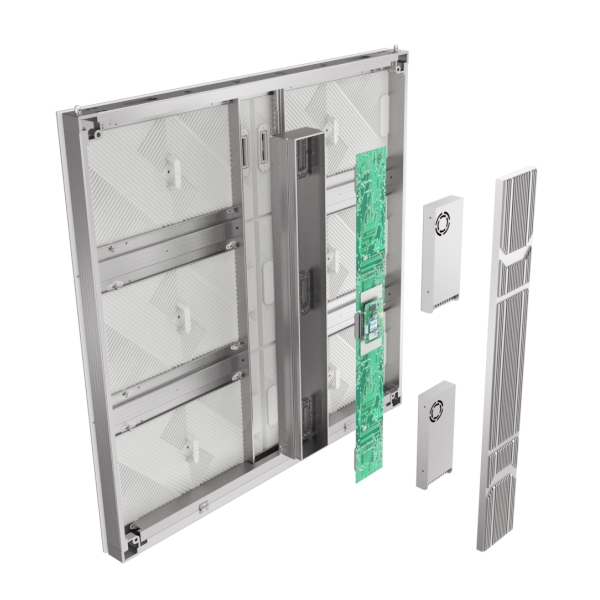

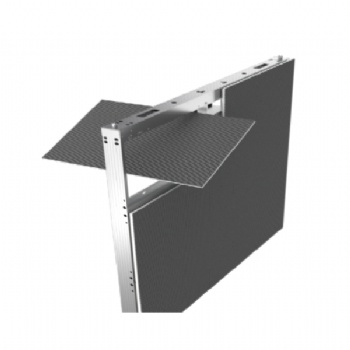

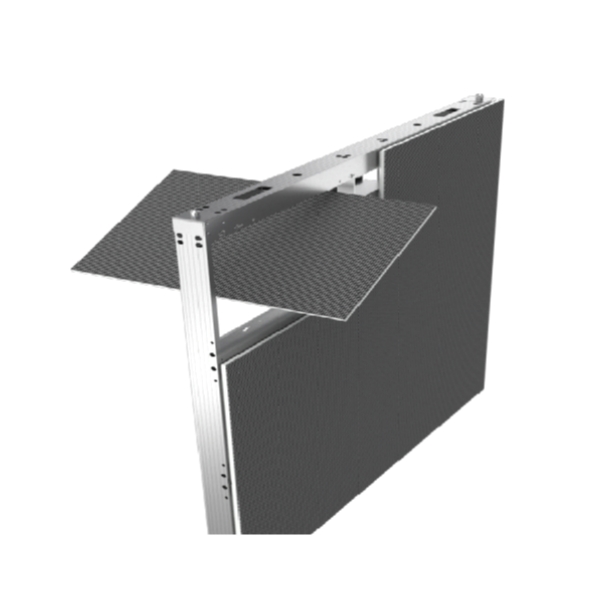

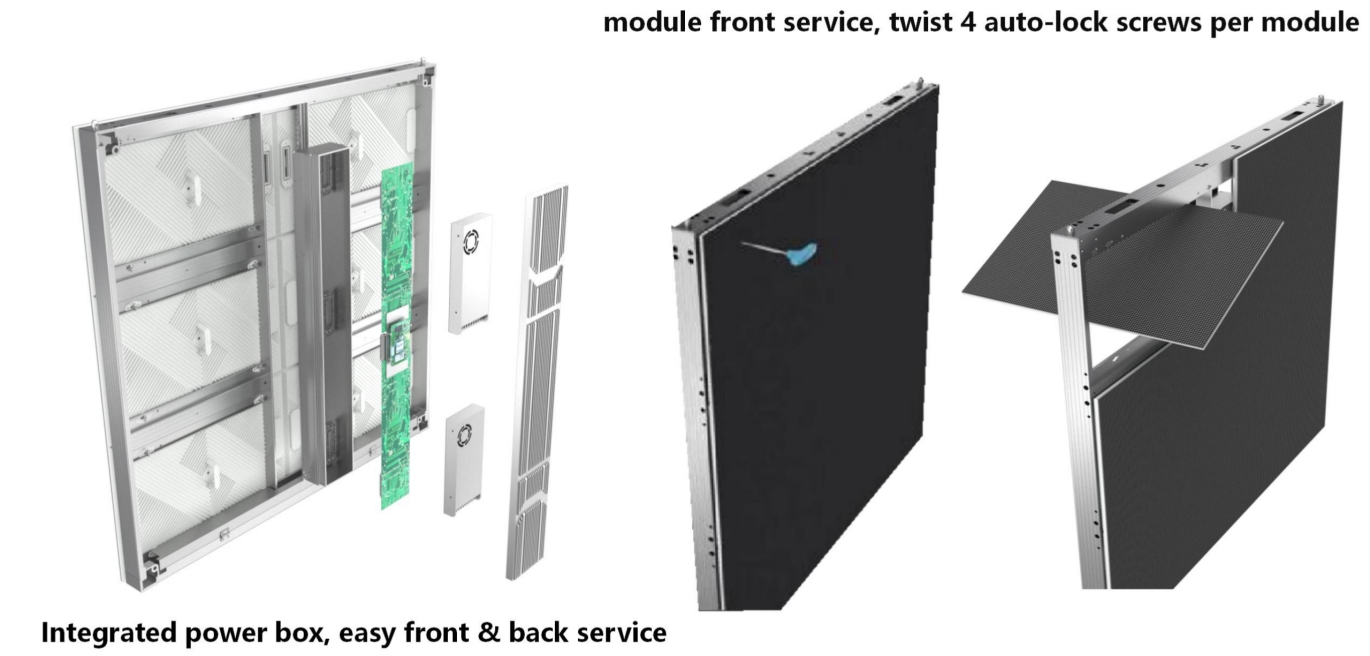

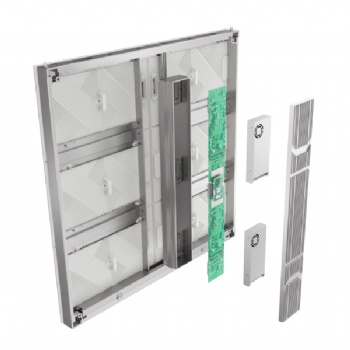

Easy front service
Energy-saving design
Pitch: 5.7 / 6.67 / 8 / 10mm

Description
Inquiry

Leading edge design OF series outdoor LED display for various fixed installation applications, advertising, scoreboard, mobile truck, etc.

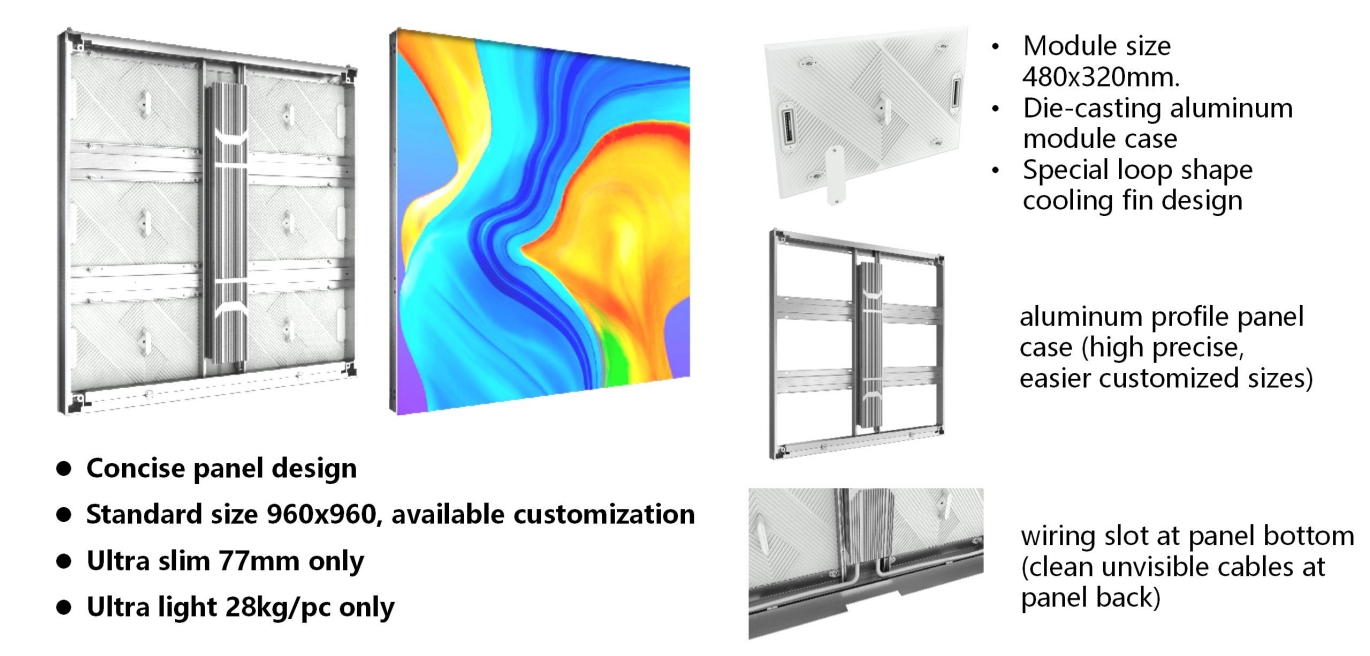

-------------------------------------------------------------- Panel Appearance OF outdoor led display -1.jpg

OF outdoor advertising sign -2.jpg

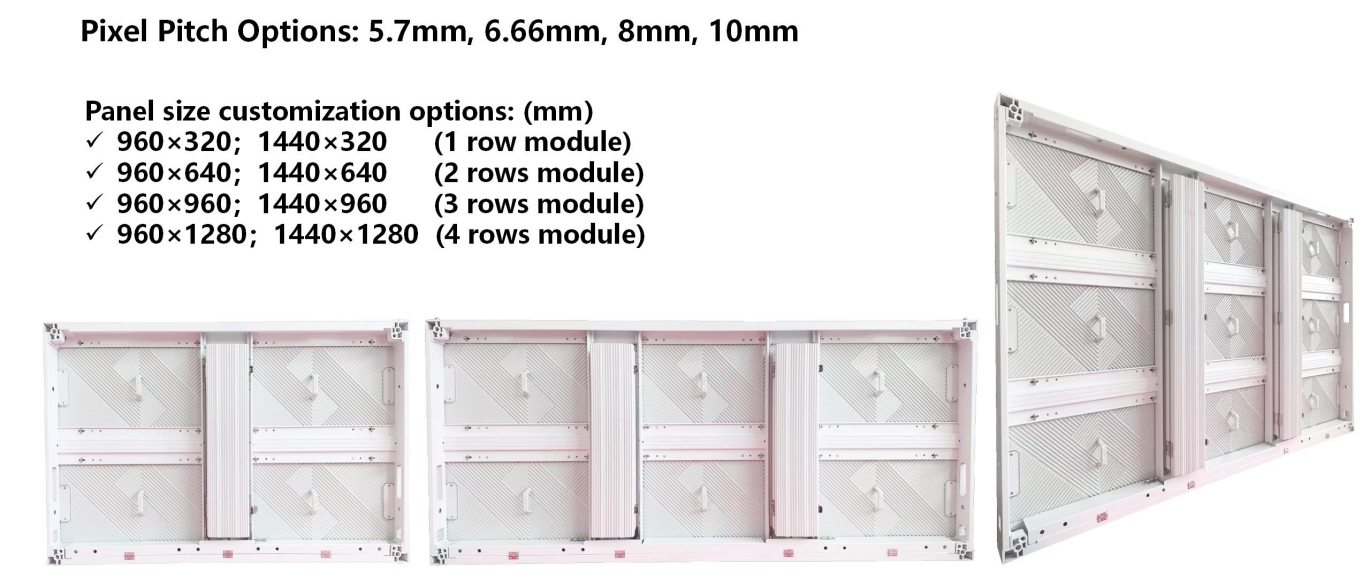

-------------------------------------------------------------- Customization

OF advertising led display -3.jpg

-------------------------------------------------------------- Waterproof

OF waterproof led display -4.jpg

-------------------------------------------------------------- Excellent Ventilation

OF led billboard -5.jpg

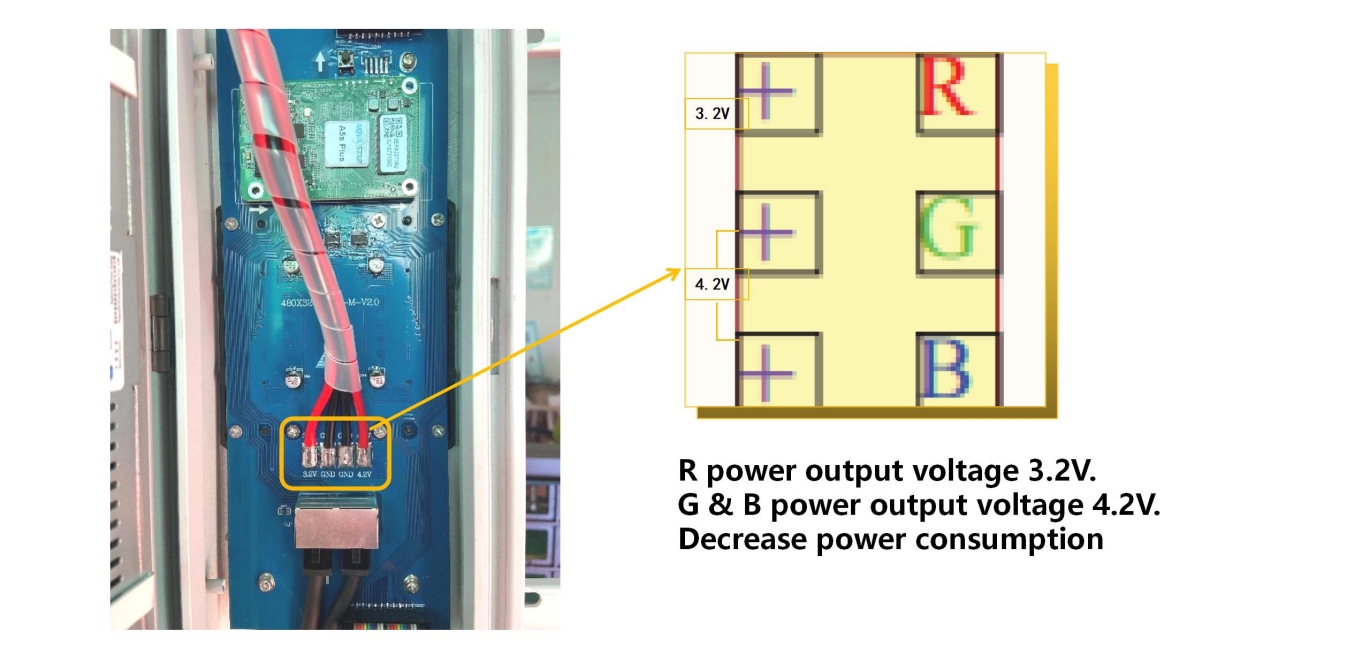

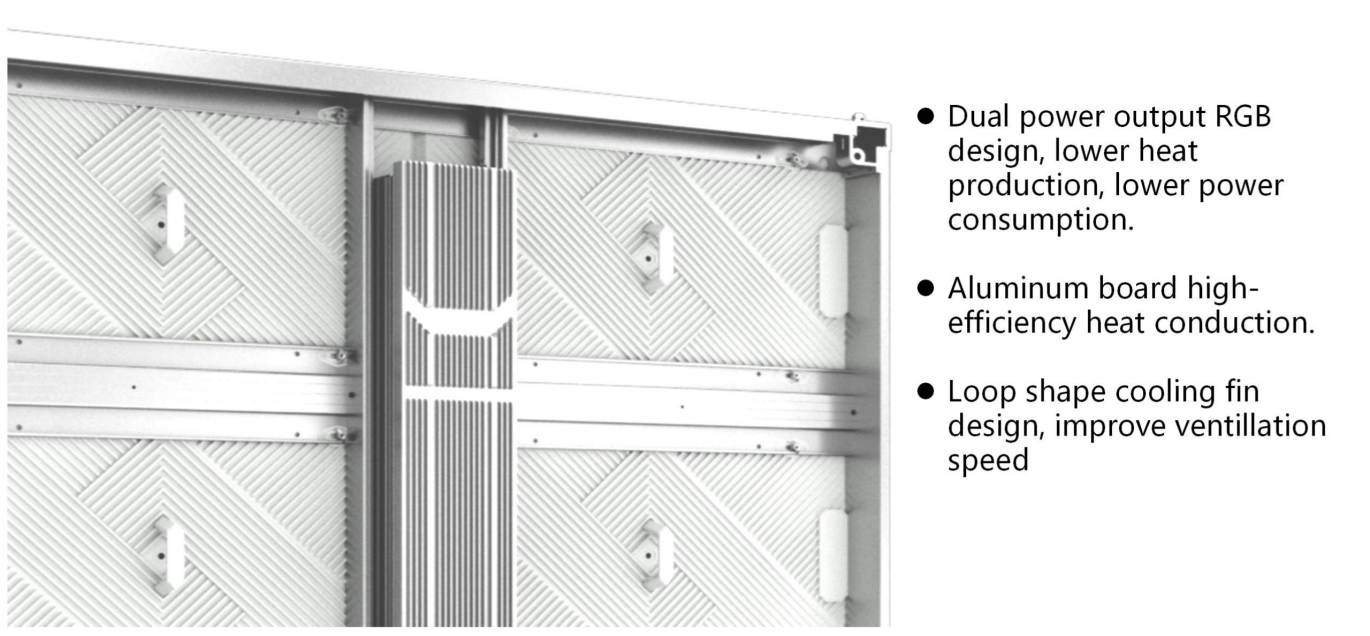

-------------------------------------------------------------- Energy-saving design, dual power output mode

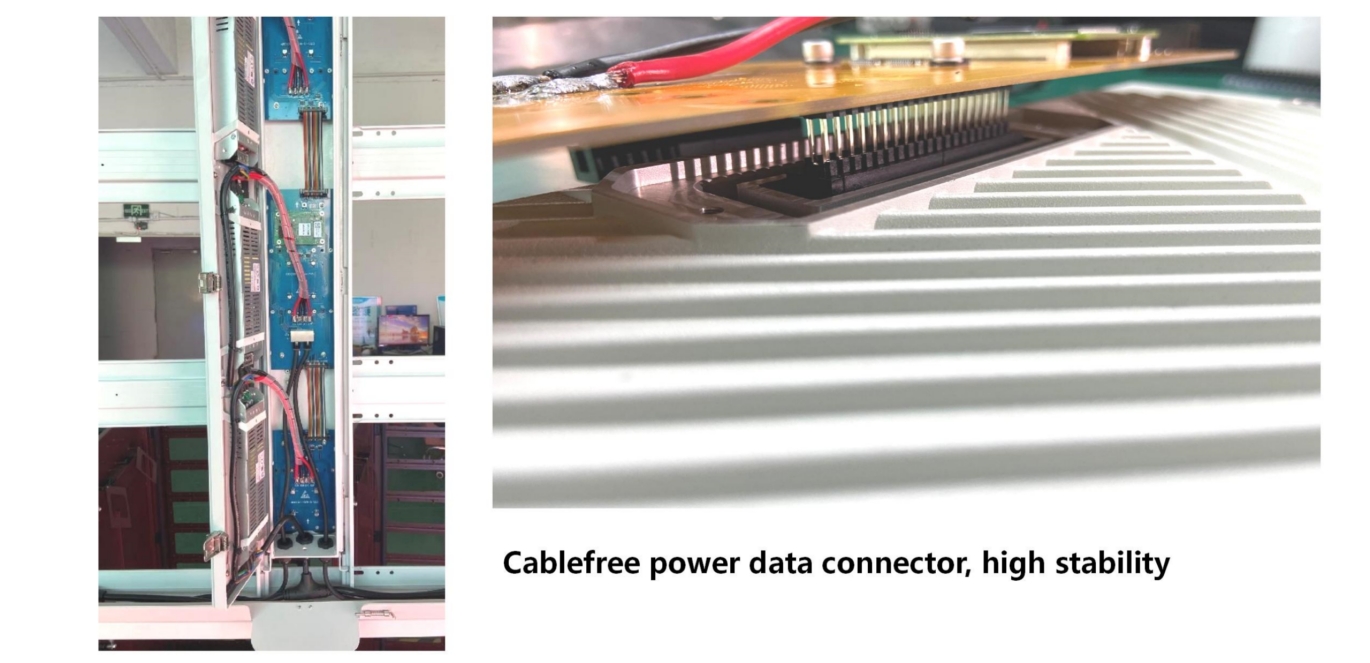

--------------------------------------------------------------Cable-free power data connector

OF led digital signage -7.jpg

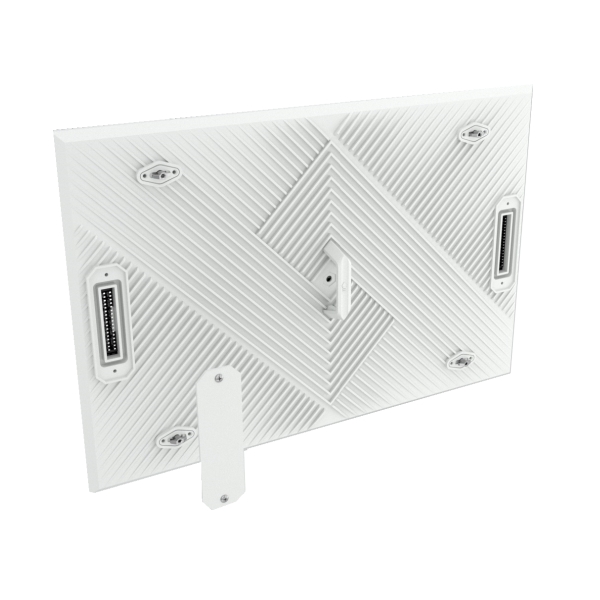

-------------------------------------------------------------- Universal module on left & right

OF led message board -8.jpg

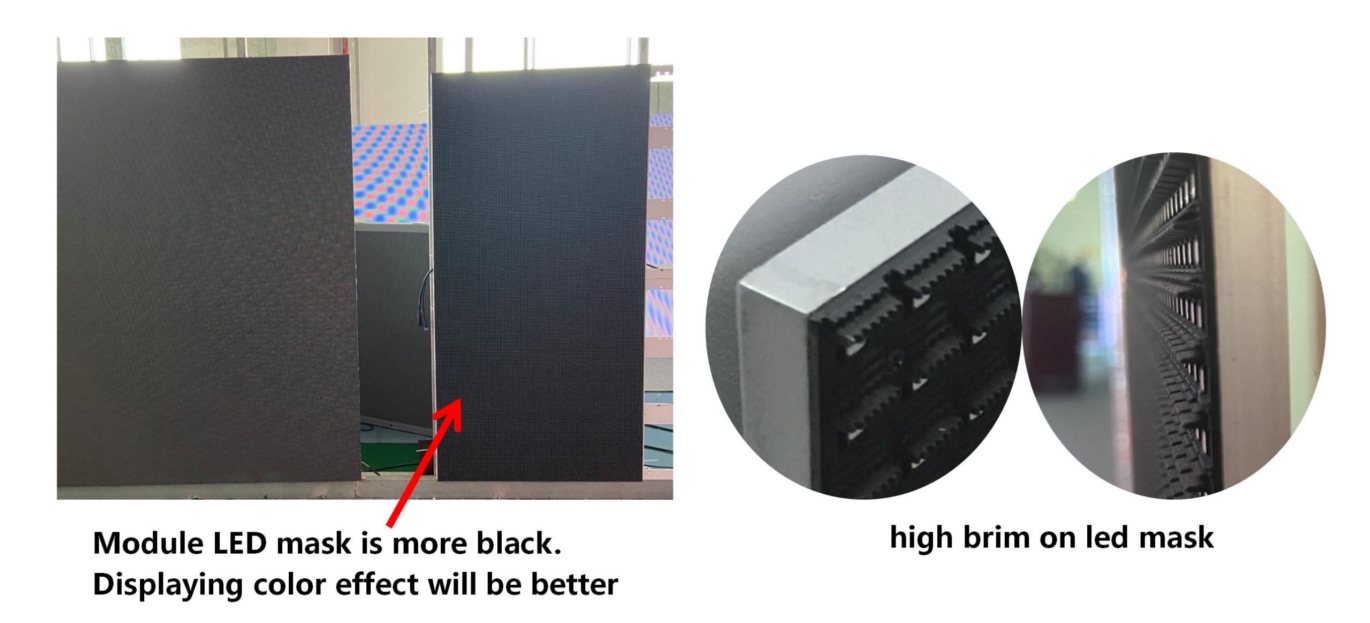

-------------------------------------------------------------- High Contrast ratio

OF led video display -9.jpg

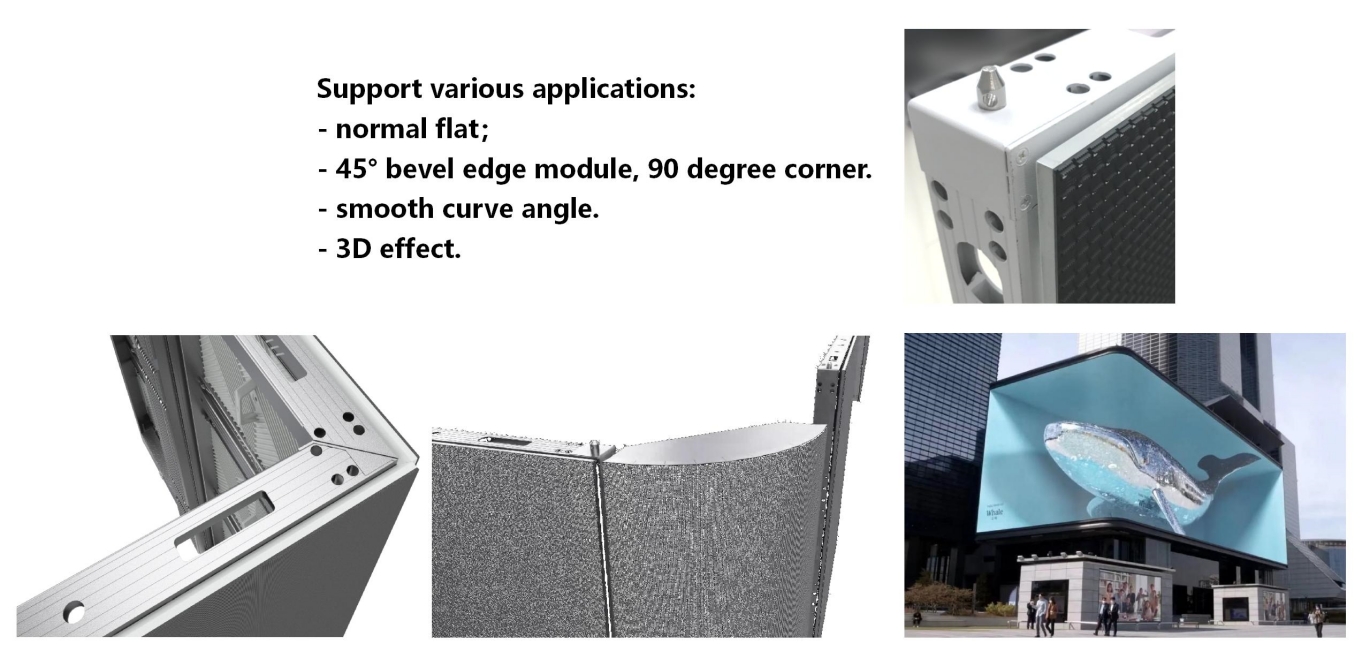

-------------------------------------------------------------- Extension Installation Applications

OF outdoor led screen -10.jpg

SPECIFICATIONS:

Model no.	OF5.7	OF6.67	OF8	OF10
Application	outdoor	outdoor	outdoor	outdoor
Pixel Pitch	5.7mm	6.67mm	8mm	10mm
Pixel Density	30625 pixels/sqm	22500 pixels/sqm	15625 pixels/sqm	10000 pixels/sqm
LED Configuration	SMD2727	SMD2727	SMD2727	SMD2727
Module size	480*320mm	480*320mm	480*320mm	480*320mm
Module Resolution	84*56 pixel	72*48 pixel	60*40 pixel	48*32 pixel
Cabinet Size	96096077mm (available customized size)
Cabinet Resolution	168*168 pixel	144*144 pixel	120*120 pixel	96*96 pixel
Cabinet material	aluminum	aluminum	aluminum	aluminum
Cabinet Weight	28kg/pc	28kg/pc	28kg/pc	28kg/pc
IP Rating ( front/back)	IP65	IP65	IP65	IP65
Installation	fixed installation	fixed installation	fixed installation	fixed installation
Maitenance	front & back service	front & back service	front & back service	front & back service
Brightness Intensity	>6500nits	>6500nits	>6500nits	>6500nits
Viewing Angle (H/V)	140°/120°	140°/120°	140°/120°	140°/120°
Drive Mode	1/7 scan	1/6 scan	1/4 scan	1/2 scan
Refresh Frequency	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz
View Distance	≥5m	≥5m	≥5m	≥5m
Gray Scale	14bit	14bit	14bit	14bit
Display Scale	16.7M	16.7M	16.7M	16.7M
Max.Power Consumption	650W/㎡	650W/㎡	650W/㎡	650W/㎡
Ave.Power Consumption	200W/㎡	200W/㎡	200W/㎡	200W/㎡
Operation Power	AC100~240V 50/60HZ
Operating Temperature	-20℃~+65℃
Operating Humidity	10~95% RH
Operating Life	100,000hours
Control system	Novastar / Colorlight
