sealed module front service outdoor LED display customized cabinet

Sealed module front service outdoor LED display customized cabinet

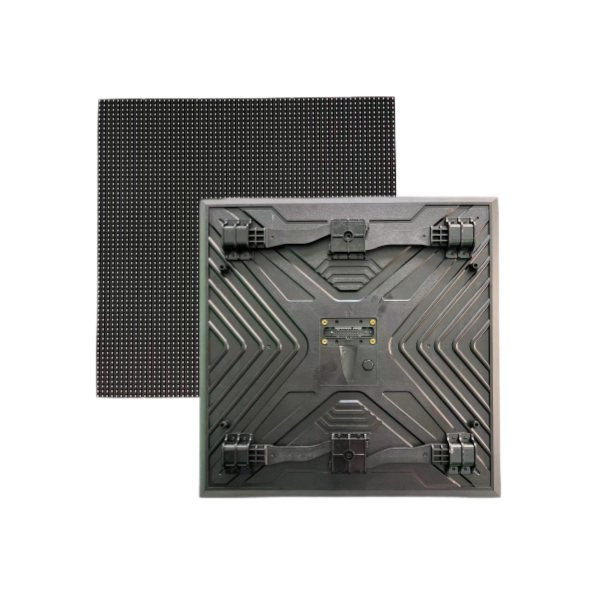

Outdoor Sealed front service module 250x250mm, 320x320mm
Flexible customized any small or big sizes slimmer cabinet
High brightness, IP65 waterproof

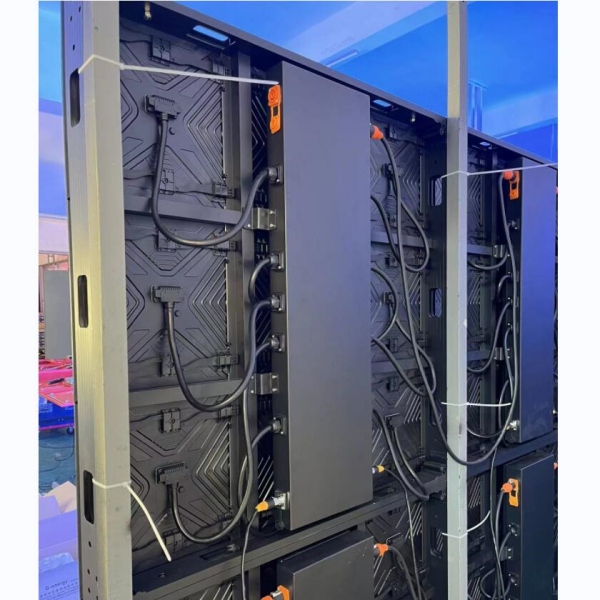

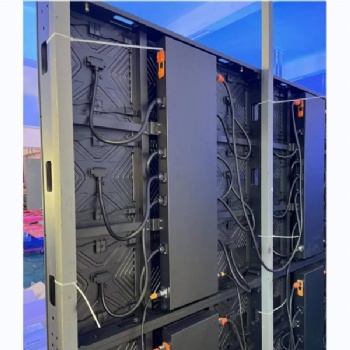

Easy outer cables wiring with aviation plugs
Pixel pitches: 2.9/3.9/4.8/5/5.2/6.66/8/10/16mm

Description
Inquiry

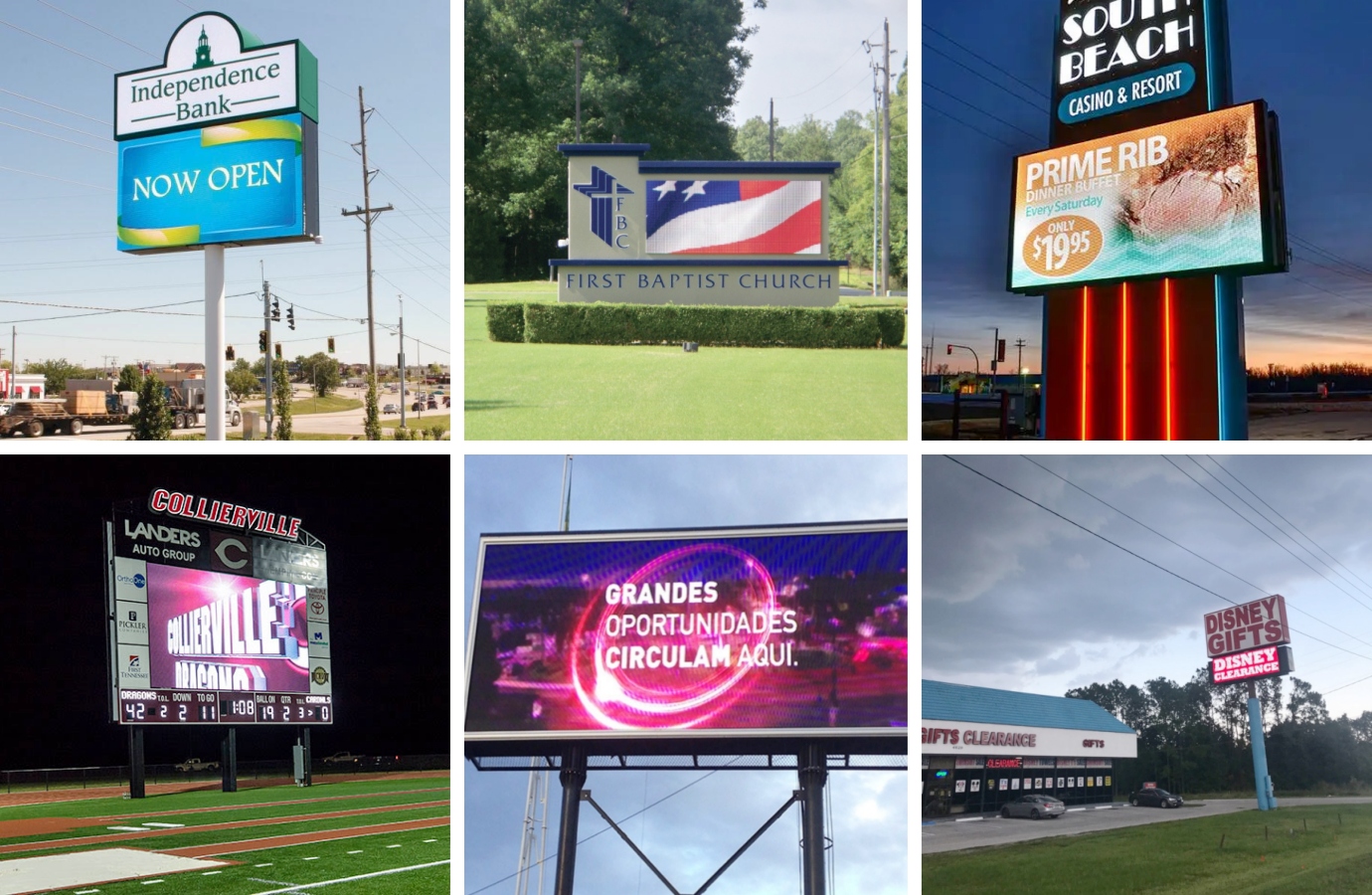

Full front service outdoor LED display for fixed installation, module options 250x250mm, 320x320mm, back sealed module support make even slimmer cabinet and good ventillation. Widely applicated for various outdoor projects which require front service, such as slim structure close to wall mounted, double sided LED sign & billboard, etc.

Key Features:

- Backcover sealed module, high flatness, high stability.

- High brightness, guarantee clear viewing from any weather condition.

- Automatic dimmer is equipped for daytime and night brightness easy adjustment.

- IP65 waterproof and dustproof, anti-UV design, high level coating protection, high-efficiency power supply, guarantee the display can work under any regular weather conditions.

- Excellent cooling system guarantee good ventilation and durable working status.

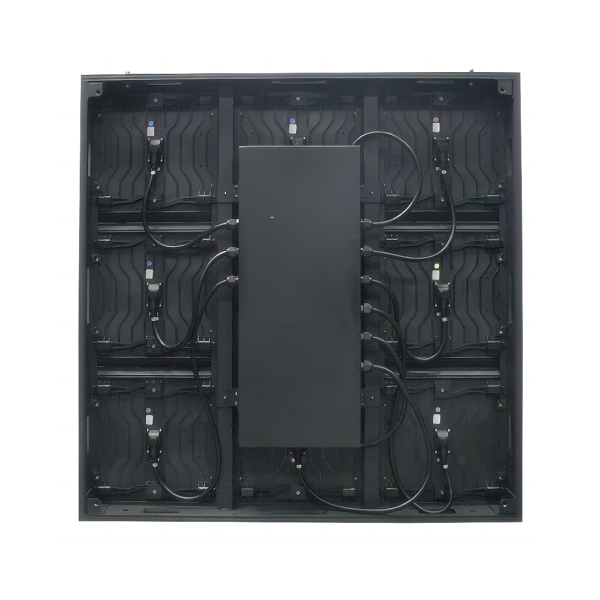

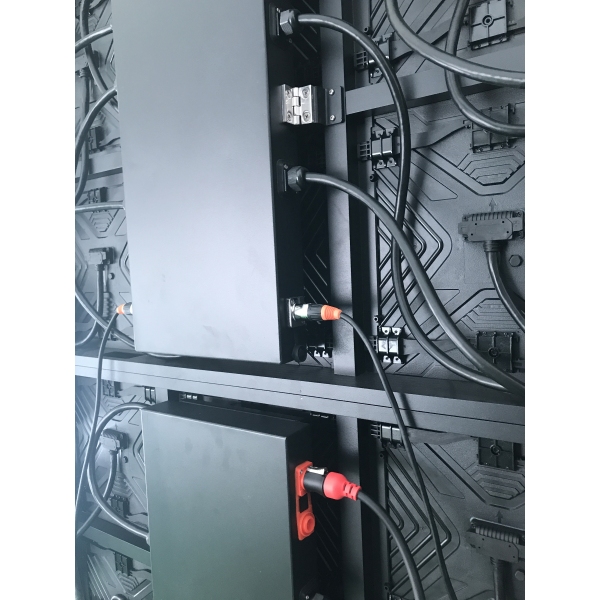

- Seamless joining, high flatness, easy outer cables wiring with aviation plugs.

- High refresh rate, guarantee high quality photo video by camera.

- Universal cabinet for various pitches using, flexible customized cabinet sizes for various projects.

- Support close mouting on wall, save cost on frame structure and installations.

SPECIFICATIONS:

250x250mm Module
Model no.	P2.9	P3.91	P4.81	P5.2
Application	outdoor	outdoor	outdoor	outdoor
Pixel Pitch	2.976mm	3.906mm	4.807mm	5.208mm
Pixel Density	112896 pixels/sqm	65536 pixels/sqm	43264 pixels/sqm	36864 pixels/sqm
LED Configuration	SMD1415	SMD1921	SMD1921	SMD1921
Module size	250*250mm	250*250mm	250*250mm	250*250mm
Module Resolution	84*84 pixel	64*64 pixel	52*52 pixel	48*48 pixel
Cabinet Size (mm)	10001000160	10001000160	10001000160	10001000160
Cabinet Resolution	336*336 pixel	256*256 pixel	208*208 pixel	192*192 pixel
Cabinet material	steel/aluminum	steel/aluminum	steel/aluminum	steel/aluminum
Cabinet Weight	55kg&45kg/㎡	55kg&45kg/㎡	55kg&45kg/㎡	55kg&45kg/㎡
IP Rating (front/back)	IP65/IP54	IP65/IP54	IP65/IP54	IP65/IP54
Installation	fixed installation	fixed installation	fixed installation	fixed installation
Maintenance	front service	front service	front service	front service
Brightness	≥6000nits	≥6000nits	≥6000nits	≥6000nits
Viewing Angle (H/V)	140°/140°	140°/140°	140°/120°	140°/120°
Drive Mode	1/21 scan	1/8 scan	1/8 scan	1/8 scan
Refresh Frequency	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz
View Distance	≥3m	≥4m	≥5m	≥5m
Digit processing	16bit	16bit	16bit	16bit
Greyscale	65536	65536	65536	65536
Max.Power Consumption	720W/㎡	800W/㎡	700W/㎡	720W/㎡
Ave.Power Consumption	252W/㎡	280W/㎡	243W/㎡	252W/㎡
Operation Power	AC100~240V 50/60HZ	AC100~240V 50/60HZ	AC100~240V 50/60HZ	AC100~240V 50/60HZ
Operating Temperature	-20℃~+65℃	-20℃~+65℃	-20℃~+65℃	-20℃~+65℃
Operating Humidity	10~95% RH	10~95% RH	10~95% RH	10~95% RH
Operating Life	100,000hours	100,000hours	100,000hours	100,000hours
Control system	Novastar / Colorlight	Novastar / Colorlight	Novastar / Colorlight	Novastar / Colorlight

320x320mm Module
Model no.	P5	P6.66	P8	P10	P16
Application	outdoor	outdoor	outdoor	outdoor	outdoor
Pixel Pitch	5mm	6.66mm	8mm	10mm	16mm
Pixel Density	40000 pixels/sqm	22500 pixels/sqm	15625 pixels/sqm	10000 pixels/sqm	3906 pixels/sqm
LED Configuration	SMD1921	SMD2727	SMD2727/ SMD3535	SMD2727/ SMD3535	DIP346
Module size	320*320mm	320*320mm	320*320mm	320*320mm	320*320mm
Module Resolution	64*64 pixel	48*48 pixel	40*40 pixel	32*32 pixel	20*20 pixel
Cabinet Size (mm)	960960160	960960160	960960160	960960160	960960160
Cabinet Resolution	192*192 pixel	144*144 pixel	120*120 pixel	96*96 pixel	60*60 pixel
Cabinet material	steel/aluminum	steel/aluminum	steel/aluminum	steel/aluminum	steel/aluminum
Cabinet Weight	55kg&45kg/㎡	55kg&45kg/㎡	55kg&45kg/㎡	55kg&45kg/㎡	55kg&45kg/㎡
IP Rating (front/back)	IP65/IP54	IP65/IP54	IP65/IP54	IP65/IP54	IP65/IP54
Installation	fixed installation	fixed installation	fixed installation	fixed installation	fixed installation
Maintenance	front service	front service	front service	front service	front service
Brightness	≥6000nits	≥6000nits	≥6000nits	≥6000nits	≥9000nits
Viewing Angle (H/V)	140°/100°	140°/100°	140°/100°	140°/100°	140°/100°
Drive Mode	1/8 scan	1/4 scan	1/2 scan	1/2 scan	static
Refresh Frequency	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz
View Distance	≥5m	≥6m	≥8m	≥10m	≥16m
Digit processing	16bit	16bit	16bit	16bit	16bit
Greyscale	65536	65536	65536	65536	65536
Max.Power Consumption	720W/㎡	740W/㎡	650W/㎡	770W/㎡	700W/㎡
Ave.Power Consumption	252W/㎡	259W/㎡	227W/㎡	270W/㎡	245W/㎡
Operation Power	AC100~240V 50/60HZ	AC100~240V 50/60HZ	AC100~240V 50/60HZ	AC100~240V 50/60HZ	AC100~240V 50/60HZ
Operating Temperature	-20℃~+65℃	-20℃~+65℃	-20℃~+65℃	-20℃~+65℃	-20℃~+65℃
Operating Humidity	10~95% RH	10~95% RH	10~95% RH	10~95% RH	10~95% RH
Operating Life	100,000hours	100,000hours	100,000hours	100,000hours	100,000hours
Control system	Novastar / Colorlight	Novastar / Colorlight	Novastar / Colorlight	Novastar / Colorlight	Novastar / Colorlight
