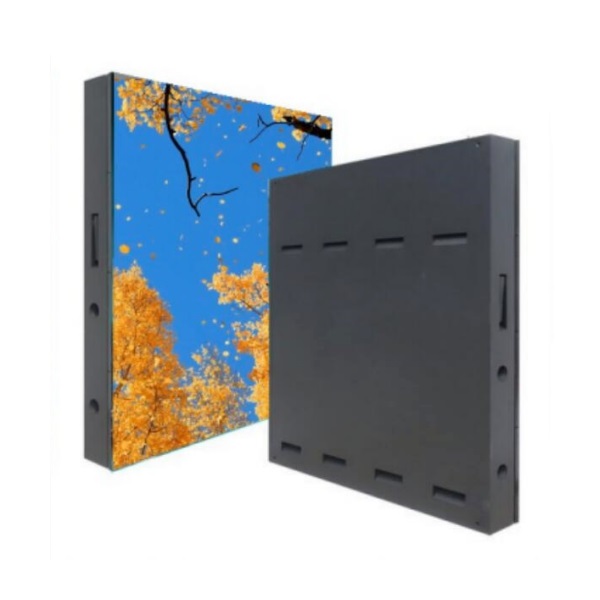

Front service outdoor LED display cabinet 960x960-1000x1000

Outdoor front service module 250x250mm, 320x320mm
Flexible customized any small or big cabinet sizes

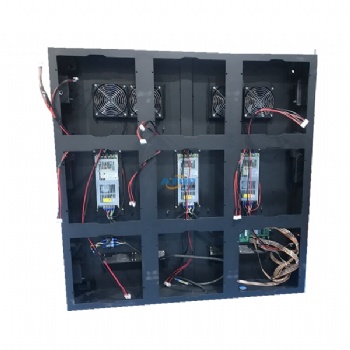

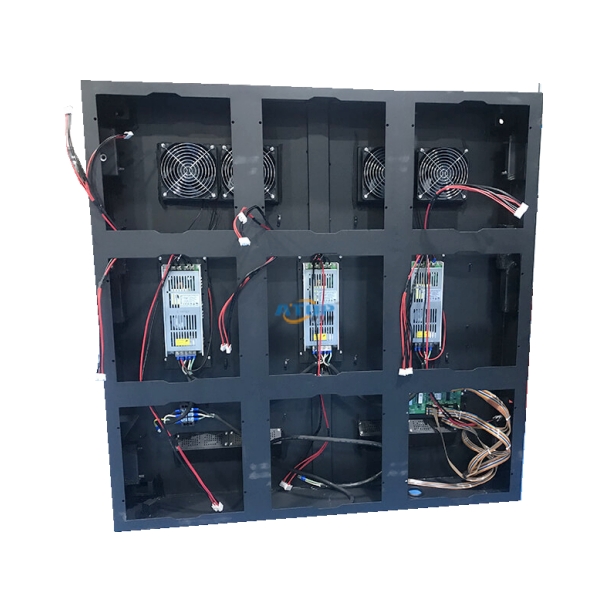

Durable design with good ventilation, back open module
High brightness, IP65 waterproof
Pixel pitches: 2.9/3.9/4.8/5/5.2/6.66/8/10/16mm

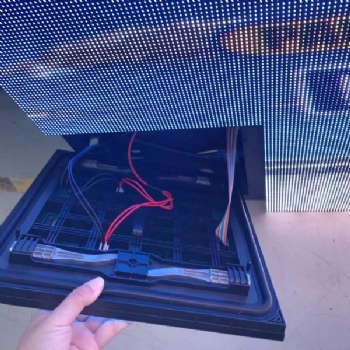

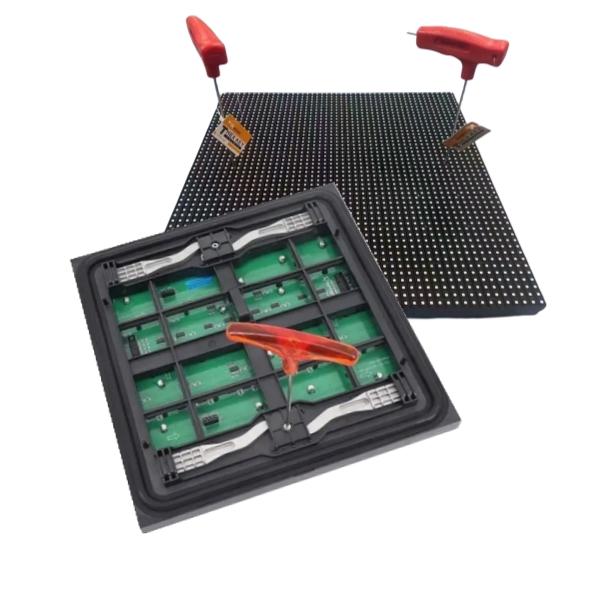

Complete front service outdoor LED display for fixed installation, module options 250x250mm, 320x320mm, easy front service by twisting two locks on module by screw tool. Widely applicated for various outdoor projects which require front service, such as slim structure close to wall mounted, double sided LED sign & billboard, stadium video scoreboard, etc.



Key Features:

- High brightness, guarantee clear viewing from any weather condition.

- Automatic dimmer is equipped for daytime and night brightness easy adjustment.

- IP65 waterproof and dustproof, anti-UV design, high level coating protection, high-efficiency power supply, guarantee the display can work under any regular weather conditions.

- Excellent cooling system guarantee good ventilation and durable working status.

- Seamless joining, inner cable wirings, clean tidy looking of the display board backside.

- High refresh rate, guarantee high quality photo video by camera.

- Universal cabinet for various pitches using, flexible customized cabinet sizes for various projects.

- Support close mouting on wall, save cost on frame structure and installations.

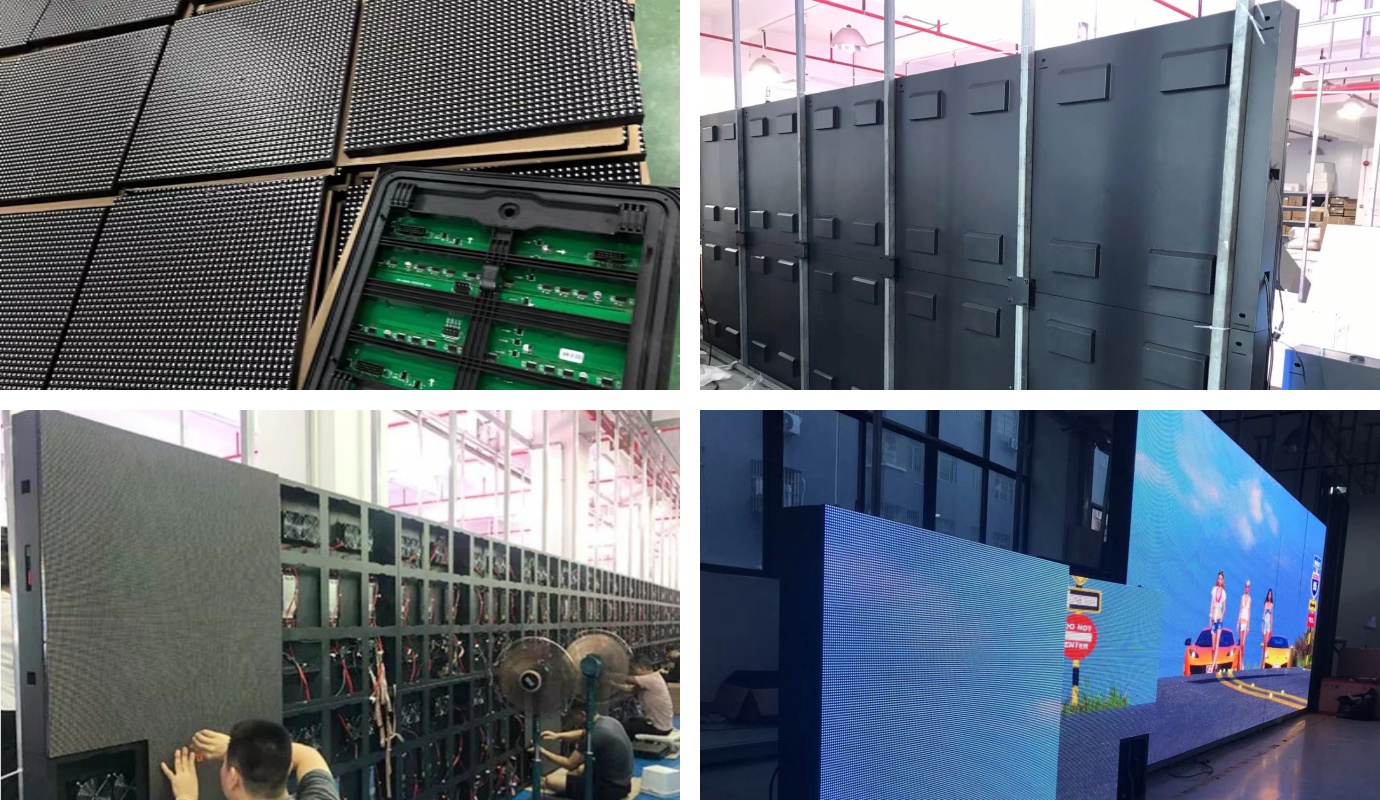

Production in factory:

outdoor led order aging test.jpg


SPECIFICATIONS:

250x250mm Module

Model no.

P2.9

P3.91

P4.81

P5.2

Application

outdoor

outdoor

outdoor

outdoor

Pixel Pitch

2.976mm

3.906mm

4.807mm

5.208mm

Pixel Density

112896 pixels/sqm

65536 pixels/sqm

43264 pixels/sqm

36864 pixels/sqm

LED Configuration

SMD1415

SMD1921

SMD1921

SMD1921

Module size

250*250mm

250*250mm

250*250mm

250*250mm

Module Resolution

84*84 pixel

64*64 pixel

52*52 pixel

48*48 pixel

Cabinet Size (mm)

1000*1000*160

1000*1000*160

1000*1000*160

1000*1000*160

Cabinet Resolution

336*336 pixel

256*256 pixel

208*208 pixel

192*192 pixel

Cabinet material

steel/aluminum

steel/aluminum

steel/aluminum

steel/aluminum

Cabinet Weight

55kg&45kg/㎡

55kg&45kg/㎡

55kg&45kg/㎡

55kg&45kg/㎡

IP Rating  (front/back)

IP65/IP54

IP65/IP54

IP65/IP54

IP65/IP54

Installation

fixed installation

fixed installation

fixed installation

fixed installation

Maintenance

front service

front service

front service

front service

Brightness

6000nits

6000nits

6000nits

6000nits

Viewing Angle  (H/V)

140°/140°

140°/140°

140°/120°

140°/120°

Drive Mode

1/21 scan

1/8 scan

1/8 scan

1/8 scan

Refresh Frequency

≥3840Hz

≥3840Hz

≥3840Hz

≥3840Hz

View Distance

≥3m

≥4m

≥5m

≥5m

Digit processing

16bit

16bit

16bit

16bit

Greyscale

65536

65536

65536

65536

Max.Power Consumption

720W/㎡

800W/㎡

700W/㎡

720W/㎡

Ave.Power Consumption

252W/㎡

280W/㎡

243W/㎡

252W/㎡

Operation Power

AC100~240V 50/60HZ

AC100~240V 50/60HZ

AC100~240V 50/60HZ

AC100~240V 50/60HZ

Operating Temperature

-20℃~+65℃

-20℃~+65℃

-20℃~+65℃

-20℃~+65℃

Operating Humidity

10~95% RH

10~95% RH

10~95% RH

10~95% RH

Operating Life

100,000hours

100,000hours

100,000hours

100,000hours

Control system

Novastar / Colorlight

Novastar / Colorlight

Novastar / Colorlight

Novastar / Colorlight

320x320mm Module

Model no.

P5

P6.66

P8

P10

P16

Application

outdoor

outdoor

outdoor

outdoor

outdoor

Pixel Pitch

5mm

6.66mm

8mm

10mm

16mm

Pixel Density

40000

pixels/sqm

22500 pixels/sqm

15625 pixels/sqm

10000 pixels/sqm

3906 pixels/sqm

LED Configuration

SMD1921

SMD2727

SMD2727/

SMD3535

SMD2727/

SMD3535

DIP346

Module size

320*320mm

320*320mm

320*320mm

320*320mm

320*320mm

Module Resolution

64*64 pixel

48*48 pixel

40*40 pixel

32*32 pixel

20*20 pixel

Cabinet Size (mm)

960*960*160

960*960*160

960*960*160

960*960*160

960*960*160

Cabinet Resolution

192*192 pixel

144*144 pixel

120*120 pixel

96*96 pixel

60*60 pixel

Cabinet material

steel/aluminum

steel/aluminum

steel/aluminum

steel/aluminum

steel/aluminum

Cabinet Weight

55kg&45kg/㎡

55kg&45kg/㎡

55kg&45kg/㎡

55kg&45kg/㎡

55kg&45kg/㎡

IP Rating  (front/back)

IP65/IP54

IP65/IP54

IP65/IP54

IP65/IP54

IP65/IP54

Installation

fixed installation

fixed installation

fixed installation

fixed installation

fixed installation

Maintenance

front service

front service

front service

front service

front service

Brightness

6000nits

6000nits

6000nits

6000nits

≥9000nits

Viewing Angle  (H/V)

140°/100°

140°/100°

140°/100°

140°/100°

140°/100°

Drive Mode

1/8 scan

1/4 scan

1/2 scan

1/2 scan

static

Refresh Frequency

≥3840Hz

≥3840Hz

≥3840Hz

≥3840Hz

≥3840Hz

View Distance

≥5m

≥6m

≥8m

≥10m

≥16m

Digit processing

16bit

16bit

16bit

16bit

16bit

Greyscale

65536

65536

65536

65536

65536

Max.Power Consumption

720W/㎡

740W/㎡

650W/㎡

770W/㎡

700W/㎡

Ave.Power Consumption

252W/㎡

259W/㎡

227W/㎡

270W/㎡

245W/㎡

Operation Power

AC100~240V 50/60HZ

AC100~240V 50/60HZ

AC100~240V 50/60HZ

AC100~240V 50/60HZ

AC100~240V 50/60HZ

Operating Temperature

-20℃~+65℃

-20℃~+65℃

-20℃~+65℃

-20℃~+65℃

-20℃~+65℃

Operating Humidity

10~95% RH

10~95% RH

10~95% RH

10~95% RH

10~95% RH

Operating Life

100,000hours

100,000hours

100,000hours

100,000hours

100,000hours

Control system

Novastar / Colorlight

Novastar / Colorlight

Novastar / Colorlight

Novastar / Colorlight

Novastar / Colorlight


Cases Gallery:
