Outdoor fixed install transparent LED display with high brightness

Outdoor fixed installation high transparency LED display with high brightness >4500nits
IP65 waterproof with durable cabinets and leds

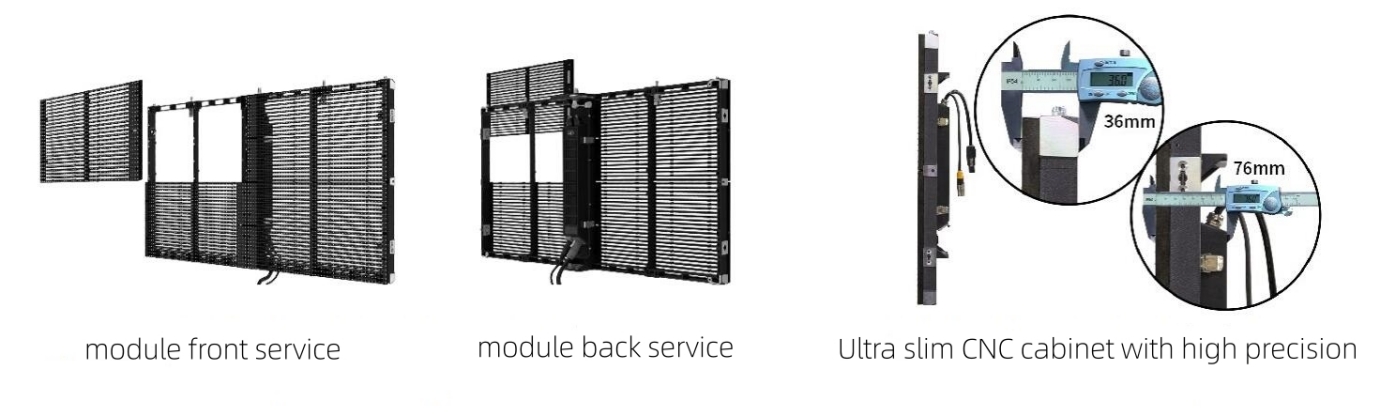

Modular design with front & back service
Slim light cabinet with fast lock for quick installation
Pixel pitches: H3.9-V7.8 / H5.2-V10.4 / 10 /15mm.

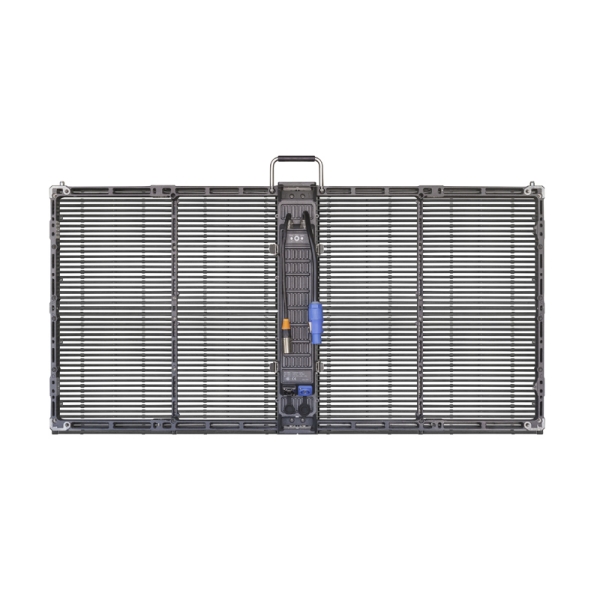

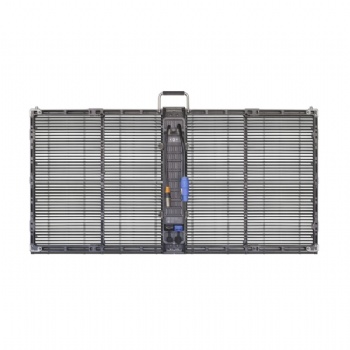

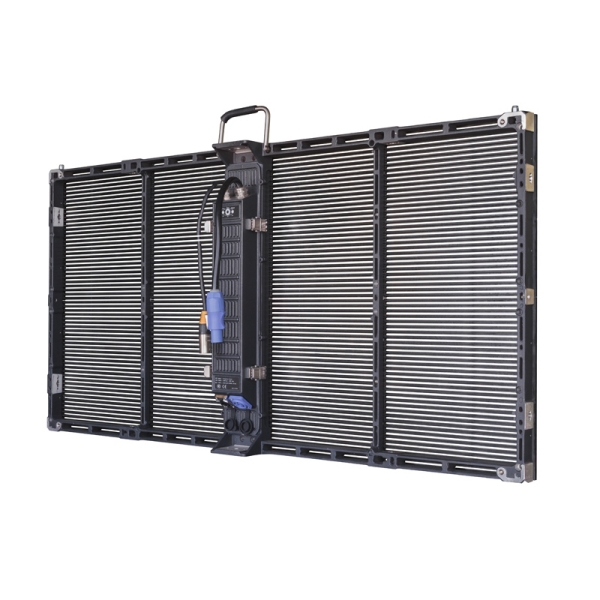

transparent LED cabinet outdoor.jpg

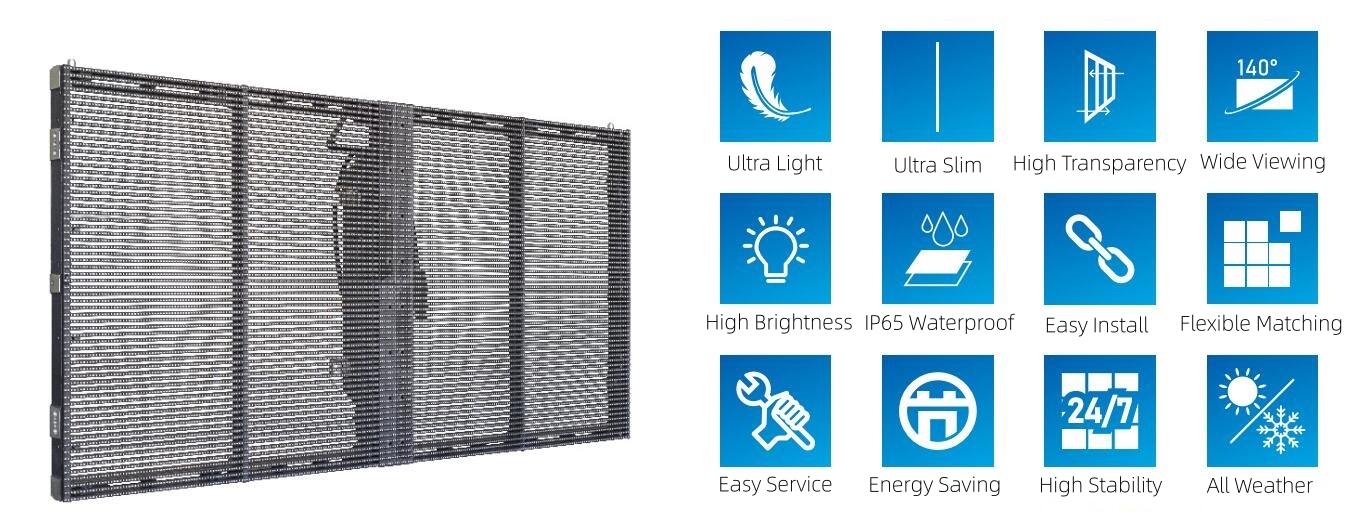

Key Features:

- Die-casting aluminum cabinet, high precision CNC, slim light and strong capability.

- High transparency up to 71%.

- Ultra slim light cabinet could match with various building structures, save cost on frame.

- Mesh cabinet guarantee good ventilation, energy-saving, no need extra cooling system.

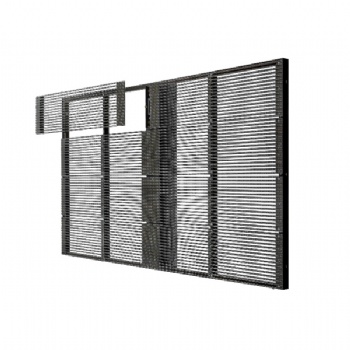

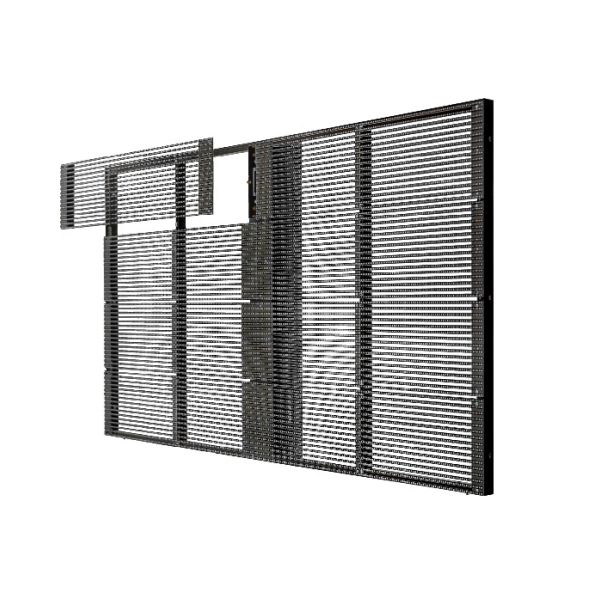

- Easy front & back service for maintenance, modular design.

- Support various installations, hanging / stacking / creative shape.

- High quality glue pouring protect leds from attack.

- IP65 waterproof, durable working under all weather conditions.

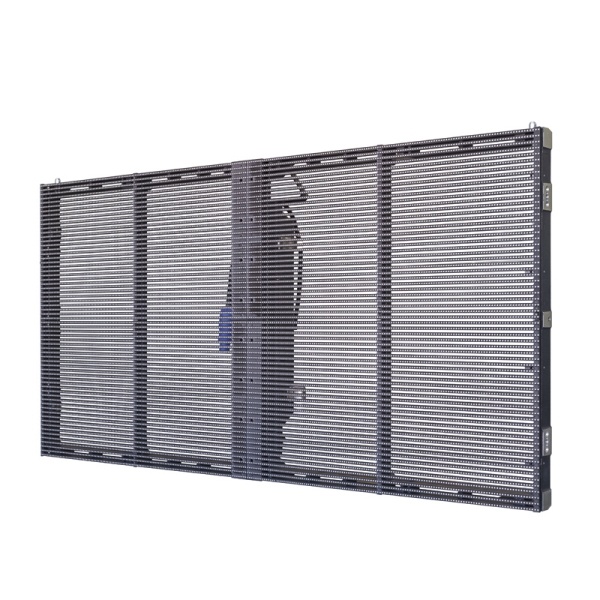

transparent LED screen.jpg

SPECIFICATIONS:

Model No.

GL3-7

GL5-10

GL10

GL15

Pixel pitch (mm)

H:3.9 - V:7.8

H:5.2 - V:10.4

H&V: 10.4

H&V: 15.6

Transparency

53%

65%

65%

80%

Pixel density

32768 pixels/sqm

18432 pixels/sqm

9216 pixels/sqm

4096 pixels/sqm

Scan mode

1/8

1/4

1/2

static

Refresh rate

5120-7000

3840

3840

30000

Brightness

4500

4500

4500

4500

LED

SMD1921

SMD1921

SMD2727

SMD2727

Best viewing distance

4m

6m

10m

15m

Viewing angle

140°

Installation

Fixed installation by bolts

Cabinet material

Die-casting aluminum

Maintenance

front & back service

IP Rating

IP65

Cabinet size (mm)

1000*500*80

Cabinet weight

15kg

Digit processing

14bit

Greyscale

65536

Color temperature

3000K/12000K adjustable

Ave no failure time

≥6500hours

Working temperature & humidity

-20~70/20%~90%

Storage temperature & humidity

-15~55/10%~90%

Max power consumption

800W/sqm

Ave power consumption

260W/sqm

Control system

Novastar

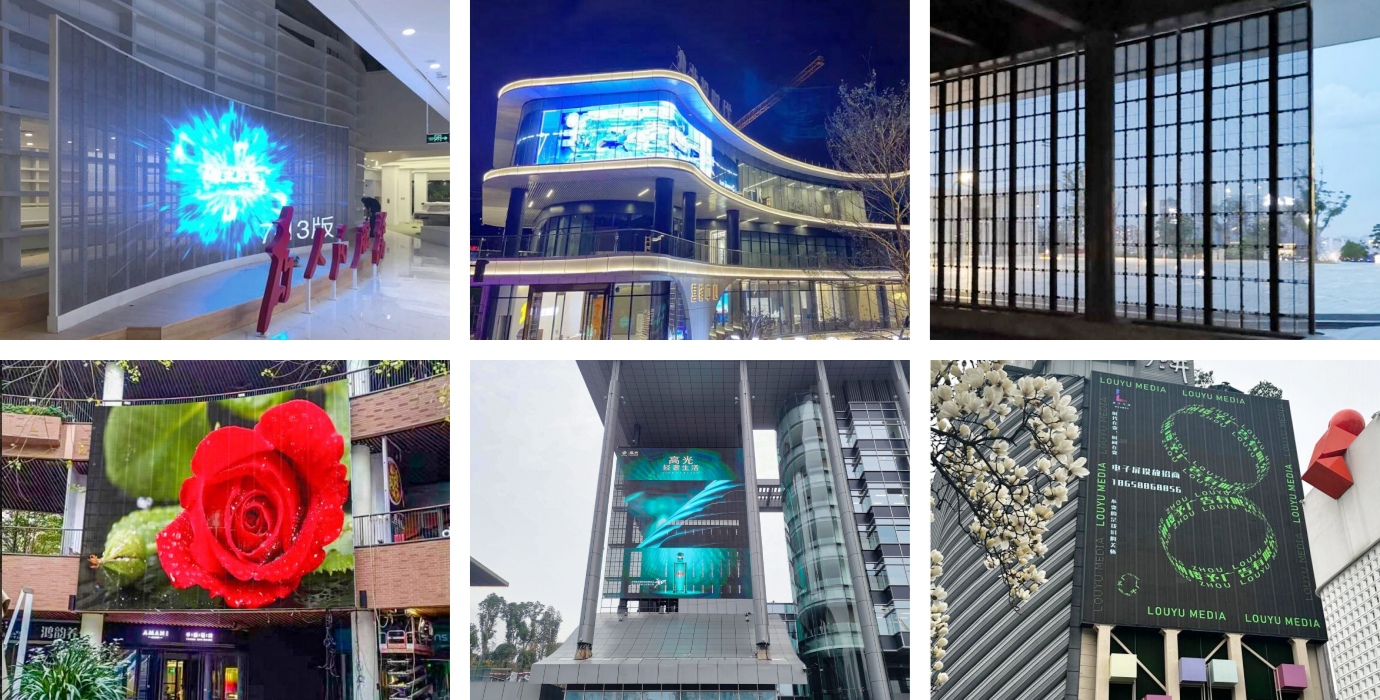

transparent led display cases.jpg
