Seimi-outdoor transparent LED display for shop window

High transparency LED display with high brightness >4500nits
Install inside shop window for advertising
Slim light cabinet with fast lock for quick installation
Pixel pitches: H2.8-V5.6 / H3.9-V7.8 / H5.2-V10.4 / 10mm.

indoor transparent LED display.jpg

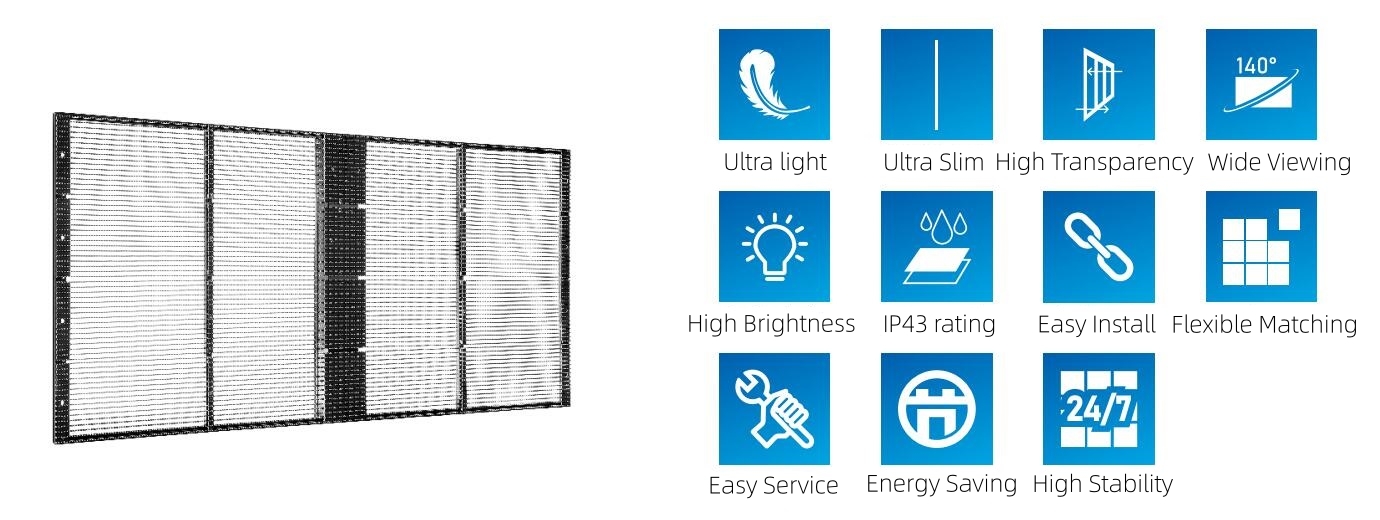

Key Features:

-  Optional cabinet size 1000x500, 1000x1000, 500x500mm, according to special project installation requirements.

-  Optional cabinet color black/white.

-  High transparency up to 75%.

-  Ultra slim light weighted cabinet, fitting most installation conditions.

-  Energy-saving design, no need additional cooling system.

-  Easy front service maintenance.

-  Support multiple installations hanging, stacking.

-  Optional upgraded GOB module, improve protections on leds.

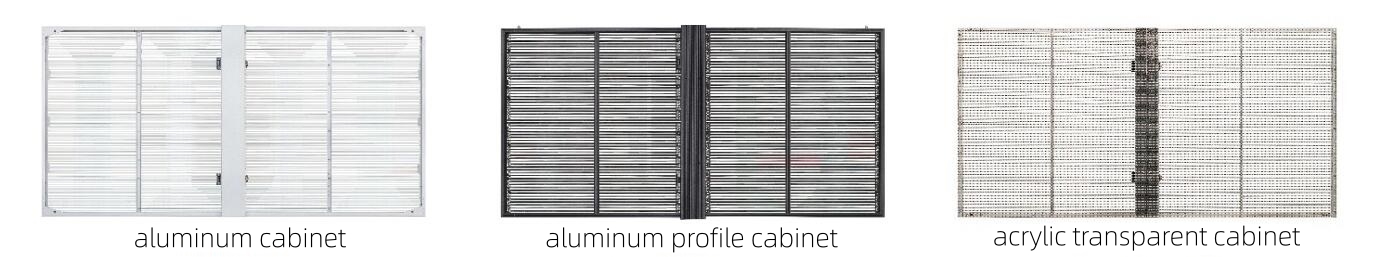

transparent cabinet.jpg

SPECIFICATIONS:

Model no.

GL2-5

GL2.8-5.6

GL3-7

GL5-10

GL10

GL15

Pixel pitch

H:2.5/V:5.2

H:2.8/V:5.6

H:3.9/v:7.8

H:5.2/V:10.4

H&V:10.4

H&V: 15.6

Transparency rate

55%

55%

75%

65%

65%

80%

Pixel density

73728 pixels/sqm

61952 pixels/sqm

32768 pixels/sqm

18432 pixels/sqm

9216 pixels/sqm

4096 pixels/sqm

Drive mode

1/12 scan

1/11 scan

1/8 scan

1/4 scan

1/2 scan

static

Refresh rate

5120Hz

5120Hz

5120Hz

3840Hz

3840Hz

30000Hz

Brightness

4500

4500

4500

4500

4500

4500

LED pixel

SMD1415

SMD1921

SMD1921

SMD1921

SMD2727

SMD2727

Best viewing distance

4m

4m

6m

8m

10m

15m

Viewing angle

140°

Installation

Fixed installation by bolts

Cabinet material

Aluminum/steel/aluminum profile/diecasting aluminum

Maintenance

Front service

IP Rating

IP30

Cabinet size (mm)

1000*500*80 / 1000*1000*80

Cabinet weight

11kg/sqm

Digit processing

14bit

Greyscale

65536

Color temperature

3000K/12000K adjustable

Ave no failure time

≥6500hours

Working temperature & humidity

-20~70/20%~90%

Storage temperature & humidity

-15~55/10%~90%

Max power consumption

800W/sqm

Ave power consumption

260W/sqm

Control system

Novastar


transparent led display cases.jpg
