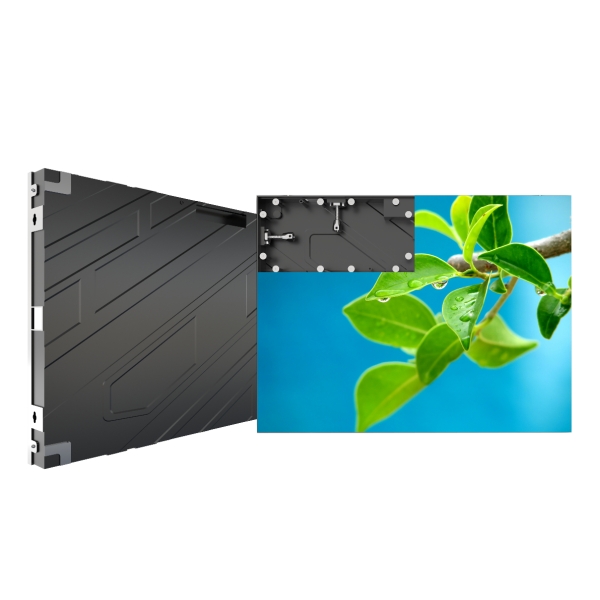

Indoor fine pitch wall mounted LED video wall high resolution

640x480 Indoor fine pitch wall mounted LED video wall high resolution

HD LED video wall modular design, 2K/4K/8K video wall

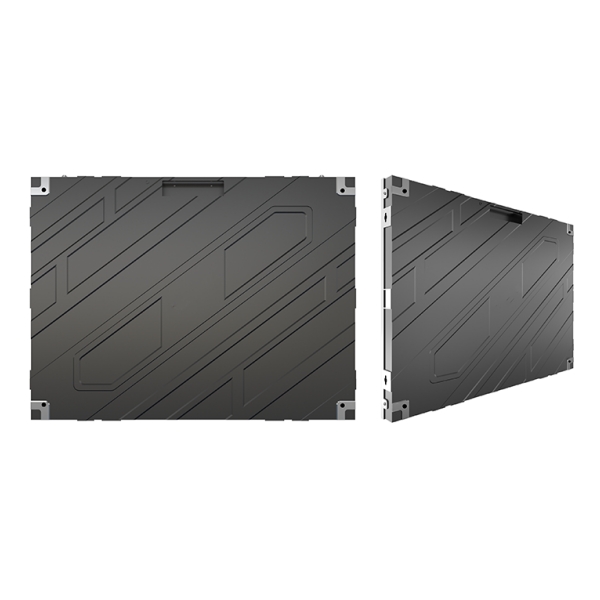

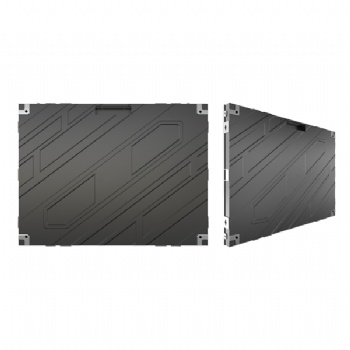

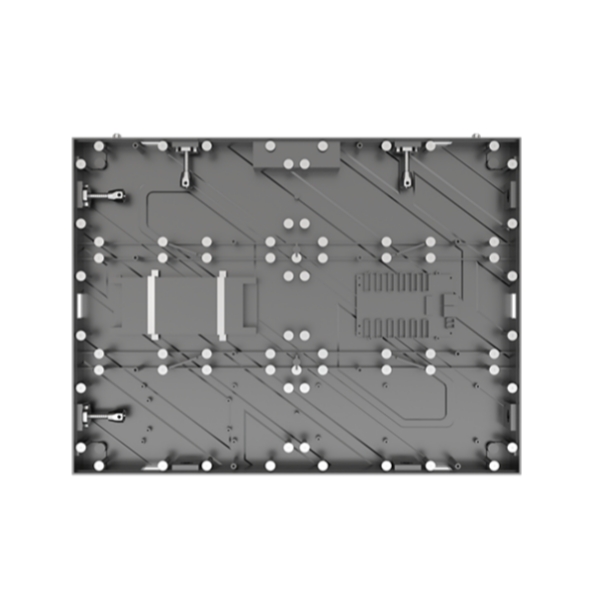

Die-casting aluminum cabinet with seamless connection

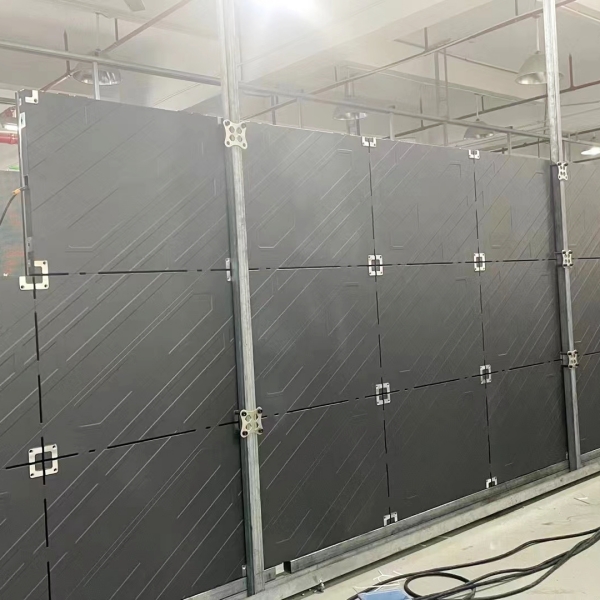

Mounting in on wall directly without frame
Easy front access install & service
Pitches: 1.25 / 1.5 / 1.6 / 1.8 / 2 / 2.5 / 3 / 4mm.
Cabinet size: 640x480, 640x360, 640x640, 960x480mm.

Description
Inquiry

HD high definition indoor LED video wall, simple frame with wall mounted structure. Applications: Control center, conference room, shopping mall, chain shop, home cinema, airport, railway station, etc.

Key Features:

- Ultra slim light die-casting aluminum cabinet, with high precision, high flatness.

- Wide viewing angle, high color consistency.

- Wide standard colour gamut for good color quality and smooth viewing.

- Good heat dissipation, low power consumption

- Using high quality leds, IC driver, thick circuit board, guarantee high brightness high refresh rate, high contrast ratio.

- Quick assembling by inner cables connection.

- Module size 320x160mm, flexible matching several cabinet size options: 640x480, 640x360, 640x640, 960x480mm.

- Optional GOB (glue on board) solution, protect module pixels from attack / water / humid / dust.

SPECIFICATIONS:

Pixel pitch	P1.25	P1.53	P1.66	P1.86	P2	P2.5	P3.076	P4
Pixel configuration	SMD1010	SMD1010	SMD1010	SMD1515	SMD1515	SMD2020	SMD2020	SMD2020
Density (pixels/sqm)	640,000	422,500	360,000	288,906	250,000	160,000	105,688	62,500
Module size	320x160	320x160	320x160	320x160	320x160	320x160	320x160	320x160
Module resolution	256x128	208x104	192x96	172x86	160x80	128x64	104x52	80x40
Cabinet size (WxH)(mm)	640x480x59	640x480x59	640x480x59	640x480x59	640x480x59	640x480x59	640x480x59	640x480x59
Cabinet resolution	512x384	416x312	384x288	344x258	320x240	256x192	208x156	160x120
Cabinet material	Die-casting aluminum	Die-casting aluminum	Die-casting aluminum	Die-casting aluminum	Die-casting aluminum	Die-casting aluminum	Die-casting aluminum	Die-casting aluminum
Cabinet weight (kg/pc)	7.5	7.5	7.5	7.5	7.5	7.5	7.5	7.5
Protection Grade	IP45	IP45	IP45	IP45	IP45	IP45	IP45	IP45
Brightness(nits)	≥600	≥600	≥600	≥600	≥800	≥1000	≥1000	≥1000
Scan mode	1/32	1/26	1/32	1/43	1/40	1/32	1/26	1/20
Refresh rate	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz
Viewing angle (H/V)	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°
Digital processing	16bit	16bit	16bit	16bit	16bit	16bit	16bit	16bit
Greyscale	65536	65536	65536	65536	65536	65536	65536	65536
Operation Power	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz
Max power consumption	580W/sqm	580W/sqm	580W/sqm	580W/sqm	439W/sqm	457W/sqm	413W/sqm	351W/sqm
Average power consumption	195W/sqm	195W/sqm	195W/sqm	195W/sqm	150W/sqm	153W/sqm	138W/sqm	117W/sqm
Frame Frequency	≥60Hz	≥60Hz	≥60Hz	≥60Hz	≥60Hz	≥60Hz	≥60Hz	≥60Hz
Working temperature	-10~40℃	-10~40℃	-10~40℃	-10~40℃	-10~40℃	-10~40℃	-10~40℃	-10~40℃
Lifetime(hours)	100,000	100,000	100,000	100,000	100,000	100,000	100,000	100,000
Maintenance	Front service	Front service	Front service	Front service	Front service	Front service	Front service	Front service
Control system	Novastar/Colorlight
