hydraulic front service outdoor LED cabinet classical easy maintenance

Classical hydraulic front service outdoor LED cabinet easy maintenance

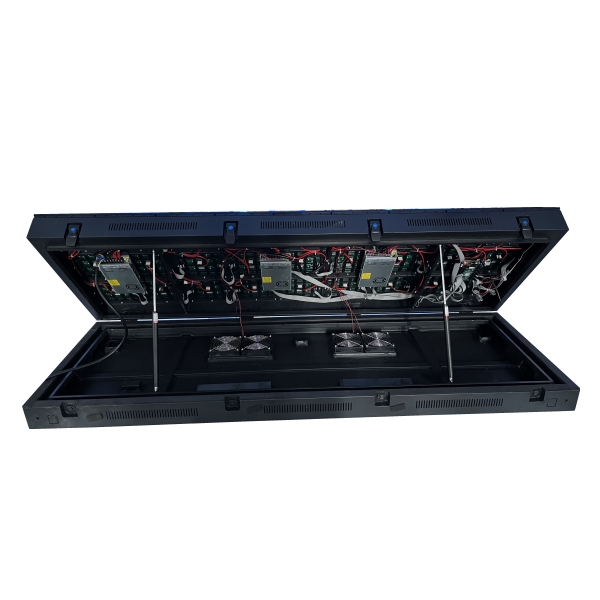

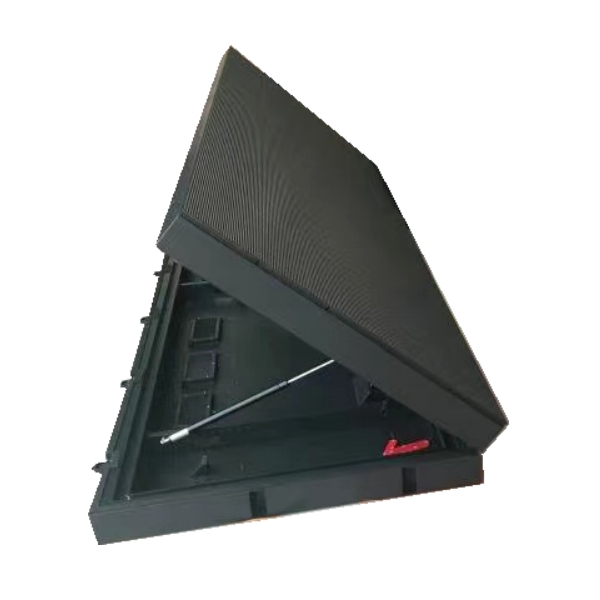

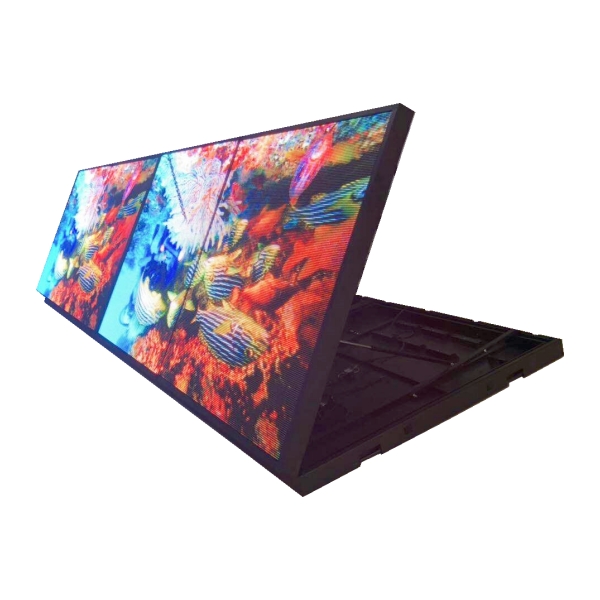

Easy front service by hydraulic rod front open
Flexible customized cabinet sizes with steel/aluminum.
High brightness ≥6000nits, DIP & SMD options
Pitches: 3/4/5/6/8/10/12/16/20mm

Description
Inquiry

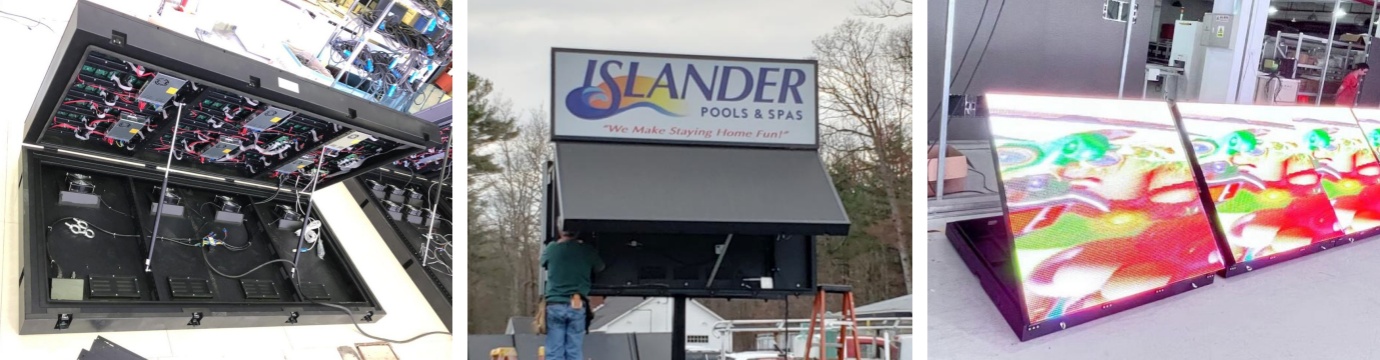

This traditional hydraulic front open cabinet, has its own special advantages in the outdoor LED display advertising applications. It could match with many pixel pitches, satisfy some special size LED sign needs, especially some small size signs, double-sided / wall mounted electronic message center, LED message board, more convenient installation and front maintenance service than use other regular fixed size cabinets assembling.

Cabinet customized size, minimum height: 2 modules, max size 1.6m high x 2m wide.

Pixel pitches: 3/4/5/6/8/10/12/16mm.

Key Features:

- High brightness, guarantee clear viewing from any weather condition. Automatic dimmer is equipped for daytime and night brightness easy adjustment.

- IP65 waterproof and dustproof, anti-UV design, high level coating protection, high-efficiency power supply, guarantee the display can work under any regular weather conditions.

- Excellent cooling system guarantee good ventilation and durable working status.

- Seamless joining, support front & back service for various displays needs.

- High refresh rate, guarantee high quality photo video by camera.

- Universal cabinet for various pitches using, flexible customized cabinet sizes for various projects.

SPECIFICATIONS:

Model no.	P3.9	P5	P6	P8	P10	P12	P16
Application	outdoor	outdoor	outdoor	outdoor	outdoor	outdoor	outdoor
Pixel Pitch	3.906mm	5mm	6mm	8mm	10mm	12mm	16mm
Pixel Density	65536 pixels/sqm	40000 pixels/sqm	27778 pixels/sqm	15625 pixels/sqm	10000 pixels/sqm	6944 pixels/sqm	3906 pixels/sqm
LED Configuration	SMD1921	SMD2727	SMD2727/SMD3535	SMD3535	SMD3535	SMD3535	SMD3535

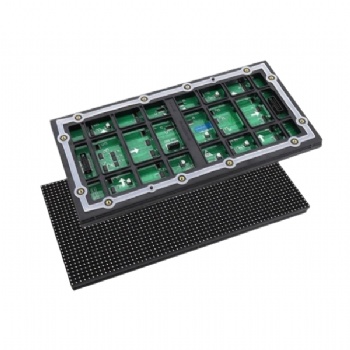

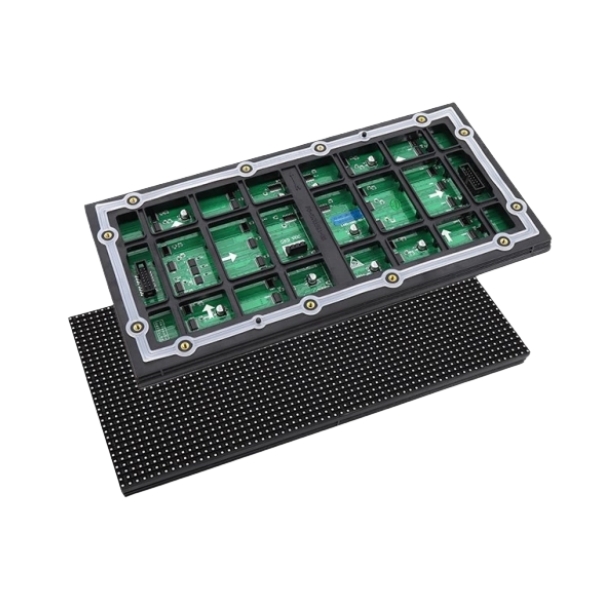

Module size	250*250mm	160*160mm	192*192mm	256*128mm	160*160mm	192*192mm	256*256mm
Module Resolution	64*64 pixel	32*32 pixel	32*32 pixel	32*16 pixel	16*16 pixel	16*16 pixel	16*16 pixel
Cabinet material	steel/aluminum	steel/aluminum	steel/aluminum	steel/aluminum	steel/aluminum	steel/aluminum	steel/aluminum
Cabinet Weight	55kg&45kg/㎡	55kg&45kg/㎡	55kg&45kg/㎡	55kg&45kg/㎡	55kg&45kg/㎡	55kg&45kg/㎡	55kg&45kg/㎡
IP Rating (front/back)	IP65/IP54	IP65/IP54	IP65/IP54	IP65/IP54	IP65/IP54	IP65/IP54	IP65/IP54
Installation	fixed installation	fixed installation	fixed installation	fixed installation	fixed installation	fixed installation	fixed installation
Maintenance	back service	back service	back service	back service	back service	back service	back service
Brightness	≥6000nits	≥6000nits	≥6000nits	≥6000nits	≥6000nits	≥6000nits	≥6000nits
Viewing Angle (H/V)	140°/100°	140°/100°	140°/100°	140°/100°	140°/100°	140°/100°	140°/100°
Drive Mode	1/8 scan	1/8 scan	1/4 scan	1/2 scan	1/2 scan	static	static
Refresh Frequency	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz
View Distance	≥4m	≥5m	≥6m	≥8m	≥10m	≥12m	≥16m
Digit processing	14bit	14bit	14bit	14bit	14bit	14bit	14bit
Greyscale	16384	16384	16384	16384	16384	16384	16384
Max.Power Consumption	800W/㎡	720W/㎡	810W/㎡	650W/㎡	770W/㎡	850W/㎡	700W/㎡
Ave.Power Consumption	280W/㎡	252W/㎡	283W/㎡	227W/㎡	270W/㎡	287W/㎡	245W/㎡
Operation Power	AC100~240V 50/60HZ	AC100~240V 50/60HZ	AC100~240V 50/60HZ	AC100~240V 50/60HZ	AC100~240V 50/60HZ	AC100~240V 50/60HZ	AC100~240V 50/60HZ
Operating Temperature	-20℃~+65℃	-20℃~+65℃	-20℃~+65℃	-20℃~+65℃	-20℃~+65℃	-20℃~+65℃	-20℃~+65℃
Operating Humidity	10~95% RH	10~95% RH	10~95% RH	10~95% RH	10~95% RH	10~95% RH	10~95% RH
Operating Life	100,000hours	100,000hours	100,000hours	100,000hours	100,000hours	100,000hours	100,000hours
Control system	Novastar / Colorlight	Novastar / Colorlight	Novastar / Colorlight	Novastar / Colorlight	Novastar / Colorlight	Novastar / Colorlight	Novastar / Colorlight
