3.84mm outdoor LED display fixed installation

P3.1-P3.84mm HD outdoor LED display front service shop window

High resolution small pitch outdoor advertising LED display
Module 200x200mm, Easy front service modules
Customized cabinet sizes with steel/aluminum options
High brightness 6000nits
Pitches: 3.12 / 3.57 / 3.84mm

Description
Inquiry

Fine pitch high resolution models for outdoor LED display fixed installation, easy complete front access by 4 screw locks on the module. Suitable for the outdoor displays require short viewing distance with high resolution, shop window display, street side advertising screen, pylon LED display, etc.

Customized cabinet size minimum height 400mm, minimum width 600mm.

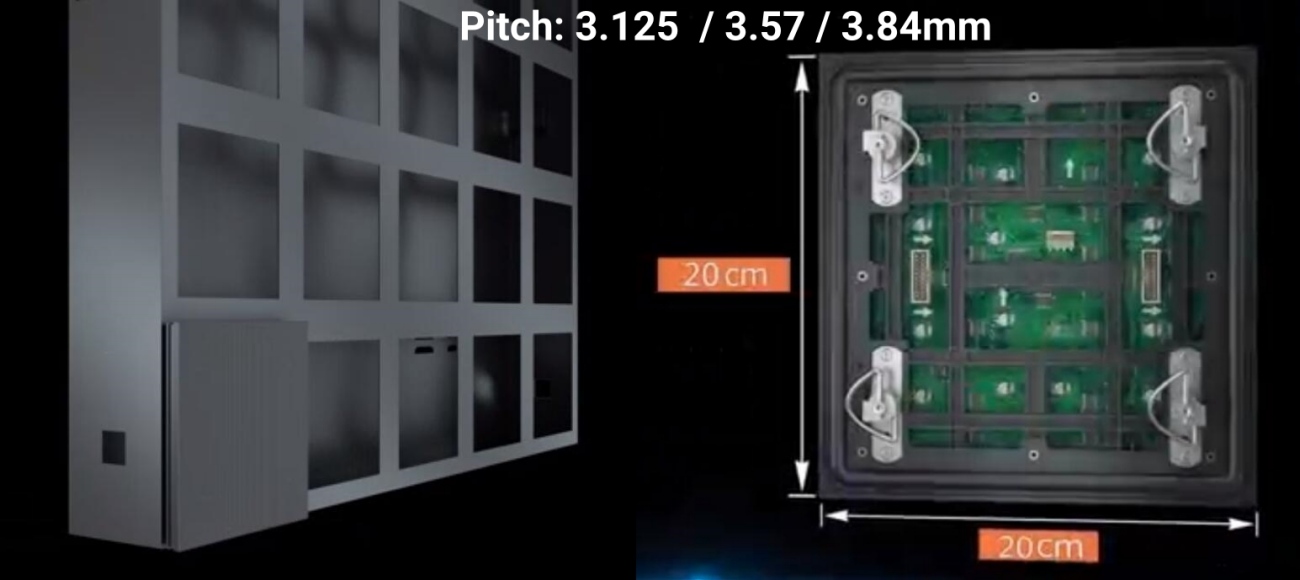

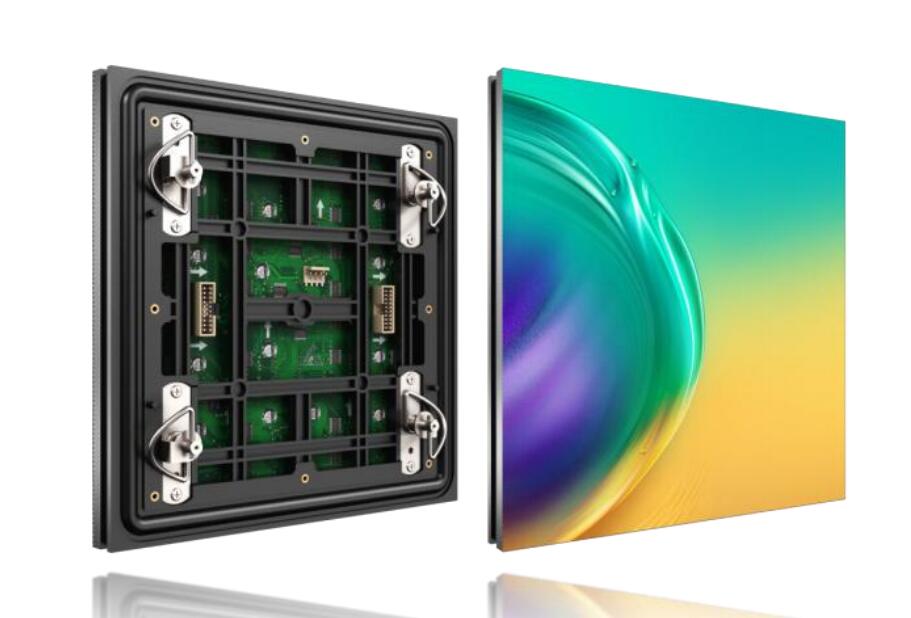

200x200mm front service module.jpg

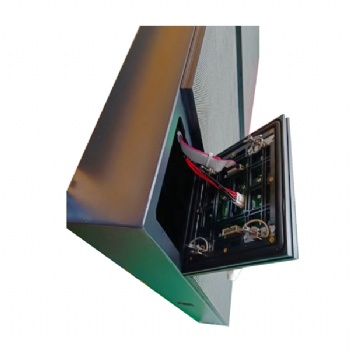

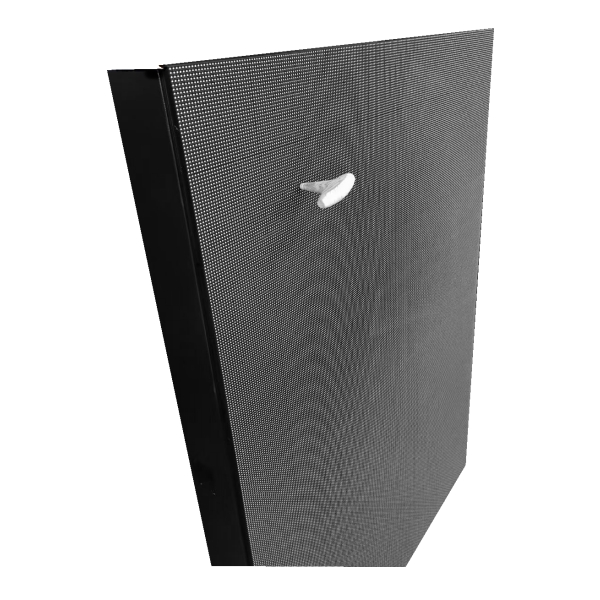

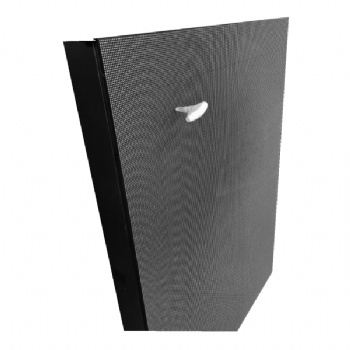

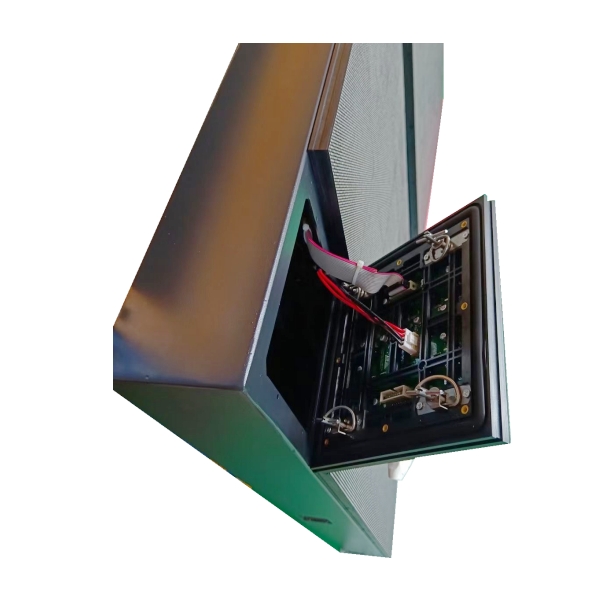

P3.84 front service.jpg

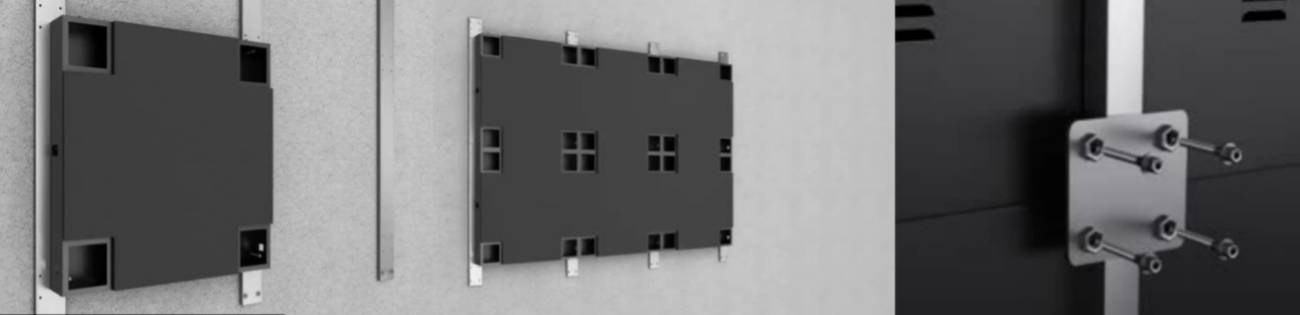

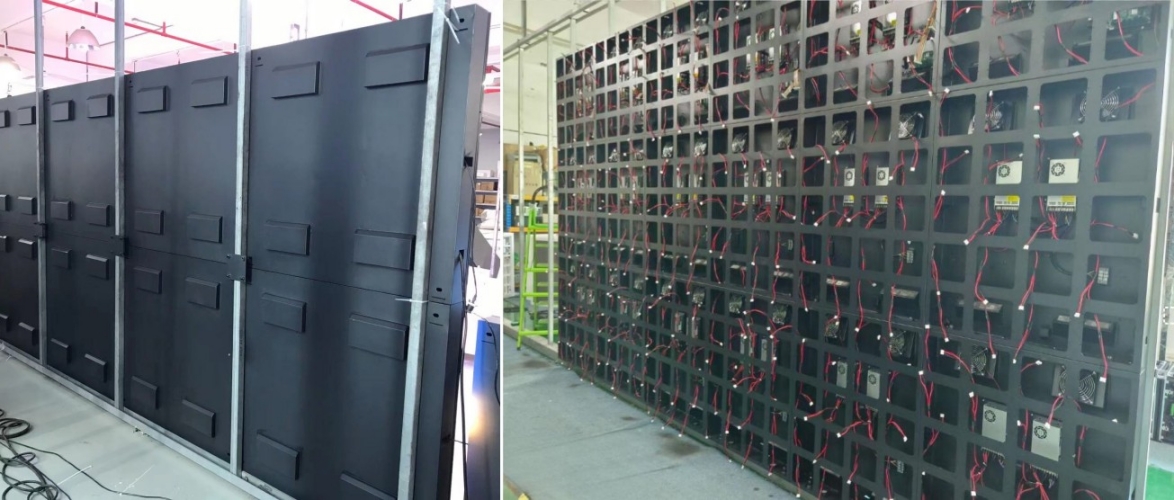

front install.jpg

SPECIFICATIONS:

Model no.	HO3.12	HO3.57	HO3.84
Application	outdoor	outdoor	outdoor
Pixel Pitch	3.125mm	3.57mm	3.84mm
Pixel Density	102400 pixels/sqm	78400 pixels/sqm	67600 pixels/sqm
LED Configuration	SMD1415	SMD1921	SMD1921
Module size	200*200mm	200*200mm	200*200mm
Module Resolution	64*64 pixel	56*56 pixel	52*52 pixel
Cabinet Size	800800140mm (available customized size)
Cabinet Resolution	256*256 pixel	224*224 pixel	208*208 pixel
Cabinet material	steel/aluminum
Cabinet Weight	46kg/sqm
IP Rating ( front/back)	front IP65 / back IP54
Installation	fixed installation
Maitenance	front service
Brightness Intensity	>6000nits	>6500nits	>6000nits
Viewing Angle (H/V)	140°/140°	140°/140°	140°/140°
Drive Mode	1/16 scan	1/14 scan	1/13 scan
Refresh Frequency	≥3840Hz	≥3840Hz	≥3840Hz
View Distance	≥4m	≥4m	≥4m
Gray Scale	14bit	14bit	14bit
Display Scale	16.7M	16.7M	16.7M
Max.Power Consumption	950W/㎡	780W/㎡	750W/㎡
Ave.Power Consumption	330W/㎡	270W/㎡	250W/㎡
Operation Power	AC100~240V 50/60HZ
Operating Temperature	-20℃~+65℃
Operating Humidity	10~95% RH
Operating Life	100,000hours
