DA series staging rental LED video display 500*1000 & 500*500mm indoor outdoor

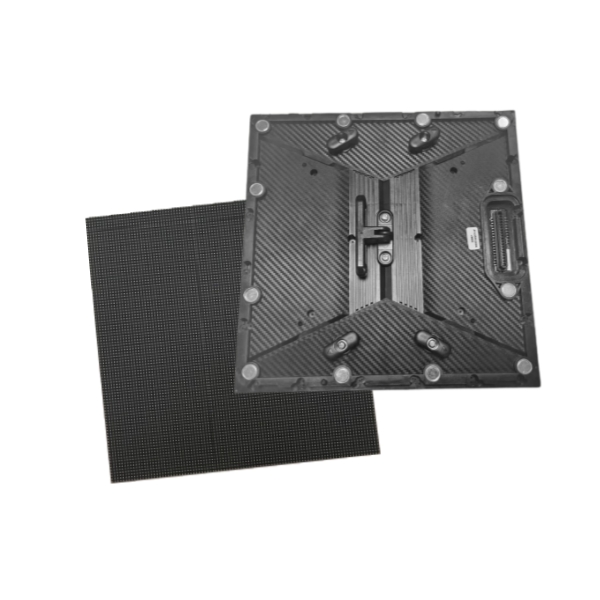

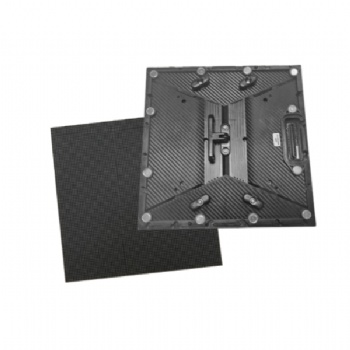

Private moulding design smart LED module 250x250mm
Cable-free module and power box, easy full front service

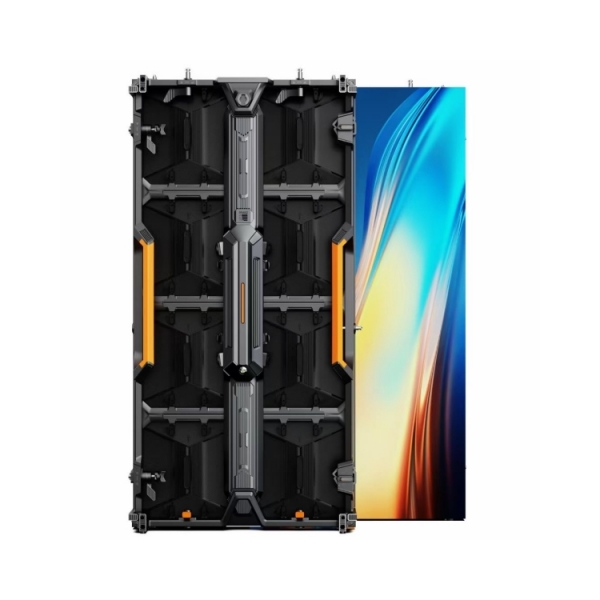

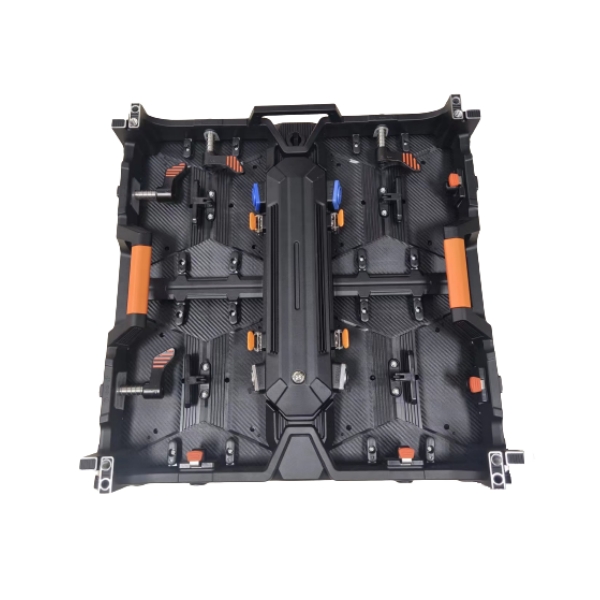

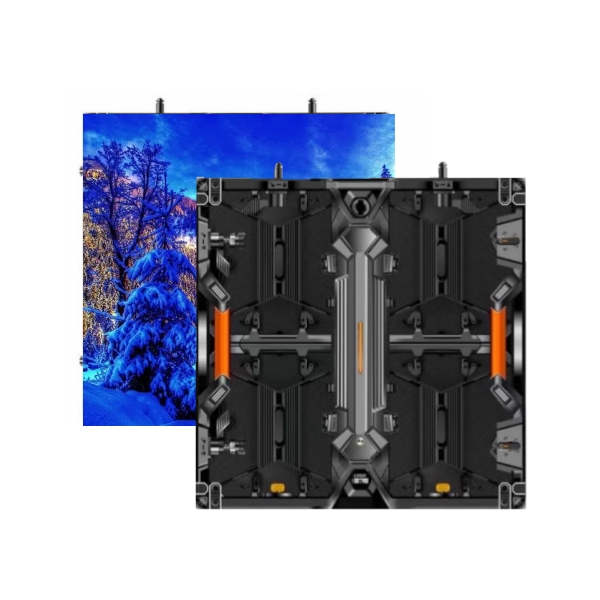

Die-casting aluminum cabinet 500x500 & 500x1000mm
IP65 waterproof, High refresh rate, High brightness 5000nits
Indoor: 2.84/3.91mm, outdoor: 2.84/3.47/3.91/4.81mm

DA series indoor & outdoor rental LED display panel with easy installation & maintenance, using for various live events, such as: indoor & outdoor stage, concert, party, mobile truck/trailer, etc.


Key Features:

1.  Outdoor model IP65 waterproof cabinet. Ultra slim cabinet 88mm only.

2.  Ultra light weight cabinet 7.2kg 500x500mm, 12.5kg 500x1000mm, easy handle by single technician.

3.  High precision diecasting aluminum cabinet case, guarantee seamless assembling.

4.  Support mixing installations on panel 500x500mm and 500x1000mm.

5.  Strong loading capacity, support large format hanging/stacking installations, hanging beams and stacking beams are provided.

6.  Patented fast lock and durable high quality aviation plug, guarantee quick assembling/disassembling.

7.  Support front & back service, both LED module and power box.

8.  Cable-free power data connector in power box, highly improve stability.



9.  Corner pixels protection design, prevent from damage on pixels when put on ground.

10.  High brightness ≥5000nits outdoor, 1000nits indoor, high refresh rate ≥3840Hz, guarantee high quality photo & video through camera.

11.  Support flat or curve angle installation, upgraded round curve lock, 0°/±3°/±5°/±10°, and 90 degree corner.

12.  Special designed handle on top and sides to help transfer and install.

13.  Private moulding design product, every part are using high quality level materials, including SMD led lamp, IC driver, high efficiency slim power supply, thick PCB board, aviation plugs and cables.

14.  Flight case packing for transportation.

15.  Available customized color on handle rubber, available customized logo.

16.  Co-working with leading controller system, Novavstar and Colorlight.

17.  Quick delivery time: 15-20 days.

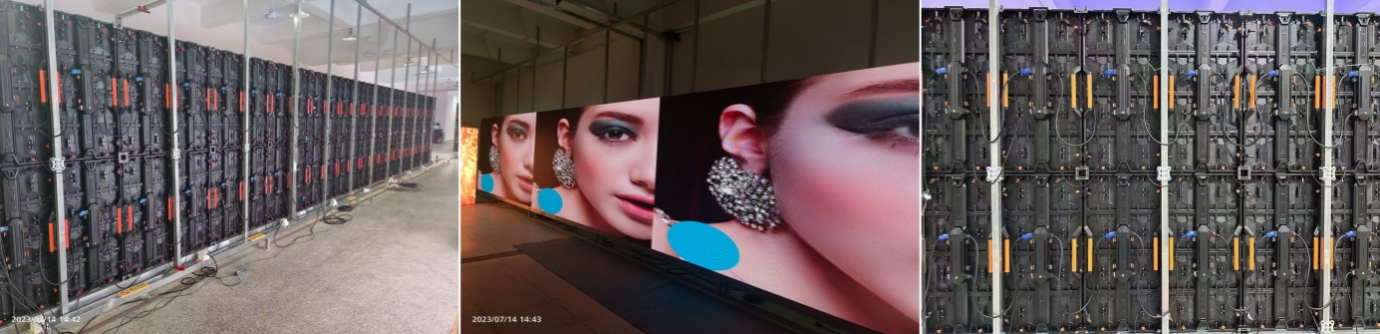

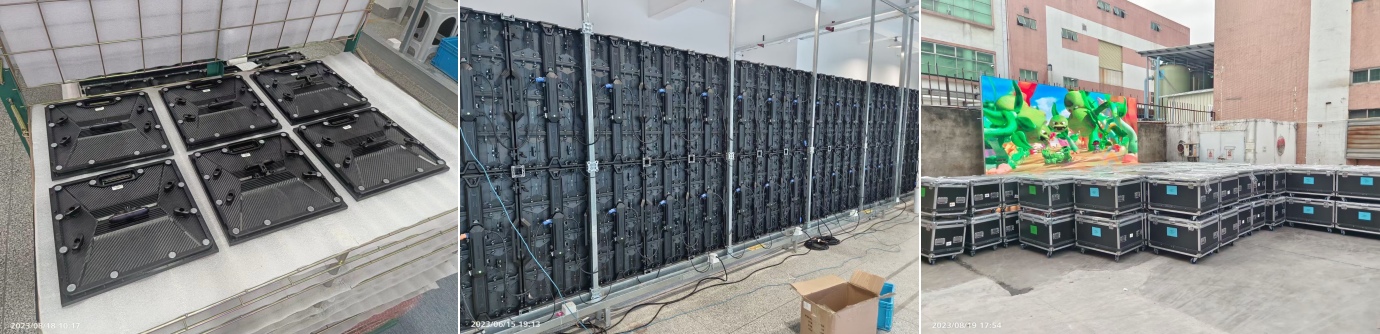

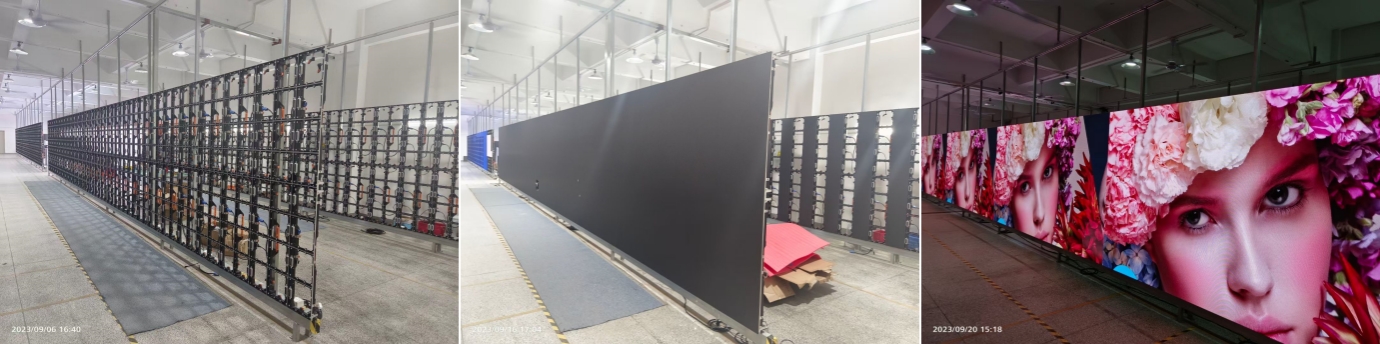

Aging test in factory:

rental led wall aging test -1.jpg

rental led display aging test -2.jpg

SPECIFICATIONS:

Model no.

DA2.84i

DA3.91i

DA2.84

DA3.47

DA3.91

DA4.81

Application

indoor

indoor

outdoor

outdoor

outdoor

outdoor

Pixel Pitch

2.84mm

3.91mm

2.84mm

3.47mm

3.91mm

4.81mm

Pixel Density

123904 pixels/m2

65536 pixels/m2

123904 pixels/m2

82944 pixels/m2

65536 pixels/m2

43264 pixels/m2

LED Configuration

SMD1515

SMD2121

SMD1415

SMD1921

SMD1921

SMD1921

Module size

250*250mm

250*250mm

250*250mm

250*250mm

250*250mm

250*250mm

Module Resolution

88*88 pixel

64*64 pixel

88*88 pixel

72*72 pixel

64*64 pixel

52*52 pixel

Cabinet material

die-casting aluminum

die-casting aluminum

Cabinet Size

500*500*88mm / 500*1000*88mm

500*500*88mm / 500*1000*88mm

Cabinet Resolution

176*176 pixels / 176*352 pixels

128*128 pixels / 128*256 pixels

176*176 pixels / 176*352 pixels

144*144 pixels / 144*288 pixels

128*128 pixels / 128*256 pixels

104*104 pixels / 104*208 pixels

Cabinet Weight

7.2kg/pc / 12.5kg/pc

7.5kg/pc / 14.25kg/pc

IP Rating (front/back)

IP30

IP65

Curve Angle

0°/±3°/±5°/±10°

0°/±3°/±5°/±10°

Installation

hanging/stacking

hanging/stacking

Maintenance

front & back service

front & back service

Brightness

≥1000nits

≥800nits

≥4200nits

≥5000nits

≥5000nits

≥5000nits

Viewing Angle (H/V)

160°/140°

160°/140°

140°/120°

140°/120°

140°/120°

140°/120°

Drive Mode

1/22 scan

1/16 scan

1/22 scan

1/18 scan

1/16 scan

1/13 scan

Refresh Rate

≥3840Hz

≥3840Hz

≥3840Hz

≥3840Hz

≥3840Hz

≥3840Hz

Digit Processing

14bit

14bit

14bit

14bit

14bit

14bit

Greyscale

65536

65536

65536

65536

65536

65536

Max.Power Consumption

380W/㎡

380W/㎡

640W/㎡

650W/㎡

560W/㎡

480W/㎡

Ave.Power Consumption

150W/㎡

150W/㎡

250W/㎡

240W/㎡

220W/㎡

190W/㎡

Operation Power

AC100~240V 50/60Hz

AC100~240V 50/60Hz

Operating Temperature

-10℃~+40℃

-20℃~+65℃

Storage Temperature

-20℃~+60℃

-40℃~+80℃

Operating Humidity

10~95% RH

10~95% RH

Operating Life

100,000hours

100,000hours

Control system

Novastar / Colorlight

Novastar / Colorlight

led display test -3.jpg
